Driver LC 10/17/25/45 W 150–1,400 mA bdW SC PRE2
basicDIM Wireless driver with lumDATA
With lumDATA, the basicDIM Wireless driver meets essential DALI-2 data specifications.

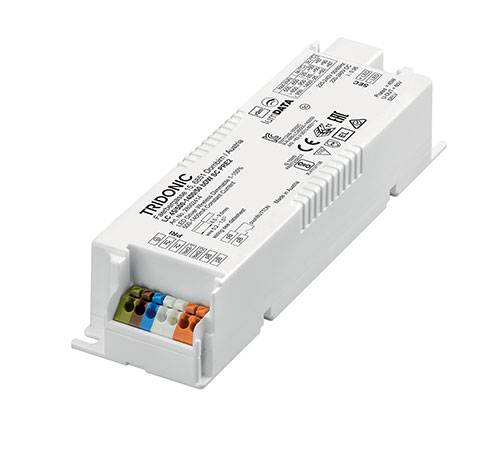

Driver LC 45 W 500–1400 mA bDW SC PRE2
With strain-relief
The dimmable constant current driver with integrated basicDIM Wireless interface now complies with DALI-2 Parts 251, 252 and 253, which define the storage and transmission of lighting, energy and diagnostic data. At Tridonic, all these specifications for LED drivers are combined under the lumDATA label. They not only make it easier for luminaires to be commissioned and maintained but also enable faults to be detected and energy consumption to be monitored. The driver is suitable for luminaire installation or separate mounting with snap-on strain relief.
Products:
Driver LC 10 W 150–400 mA bDW SC PRE2
Driver LC 17 W 250–700 mA bDW SC PRE2
Driver LC 25 W 350–1050 mA bDW SC PRE2
Driver LC 45 W 500–1400 mA bDW SC PRE2
Products:
Driver LC 10 W 150–400 mA bDW SC PRE2
Driver LC 17 W 250–700 mA bDW SC PRE2
Driver LC 25 W 350–1050 mA bDW SC PRE2
Driver LC 45 W 500–1400 mA bDW SC PRE2
