basicDIM
Controls and Connectivity
Light for every mood#light
An intelligent system solution like basicDIM features lighting control that takes into account the presence of users and ambient light. Besides being suitable for master/slave luminaires, this efficient system wins out in particular thanks to software-free installation. Complex spatial solutions can be implemented quickly and straightforwardly.

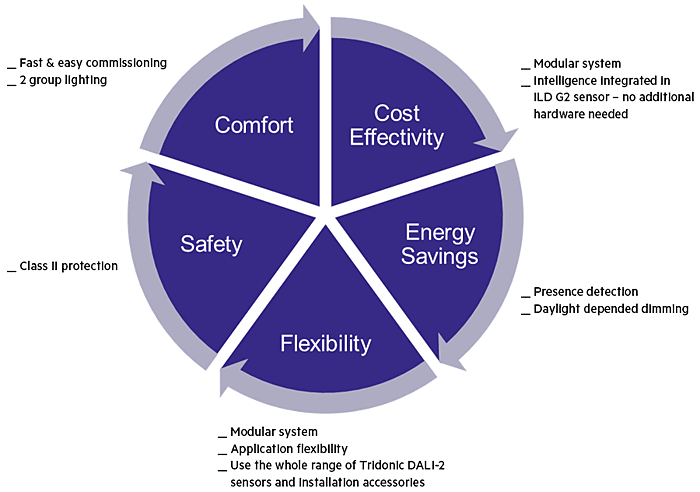

ILD Generation 2 – at a glance#ild
- Easy & cost effective dimming solution for luminaire and room applications
- ILD G2 sensor with integrated application controller
- 2 group dimming function: it is possible to set an offset for direct/indirect light or daylight depended group lighting
- Modular system structure: choose only components and features you need and save space and money
- Can be powered via DALI line: DALI PS3 or LED driver with integrated power supply needed
- Compatible with MSensor G3 portfolio and DALI XC G3
- Max. 64 DALI gears and 8 input devices (ILD G2 FSL system: 20 DALI gears and 4 input devices)
- Fast & easy commissioning on-site via IR remote
- Configure default settings in manufacturing via companionSUITE
Use case examples#use-cases

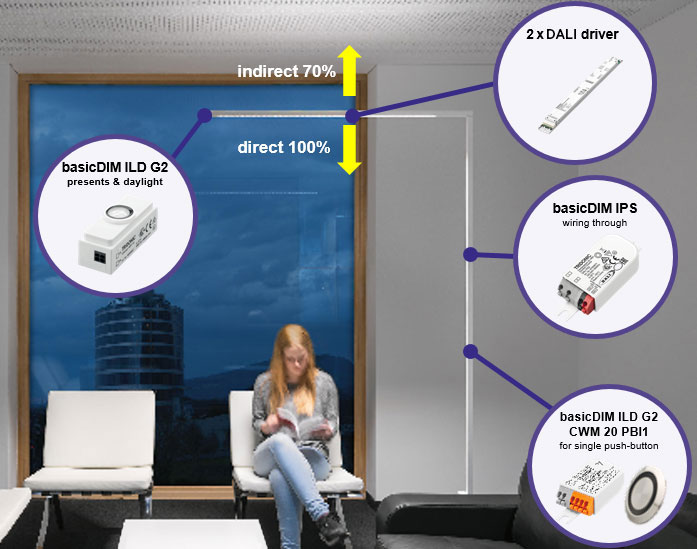

Freestanding luminaire
- Presence/daylight detection
- Single push button for switching and dimming
- Direct/indirect light
- DALI power supply with basicDIM IPS or po4a driver

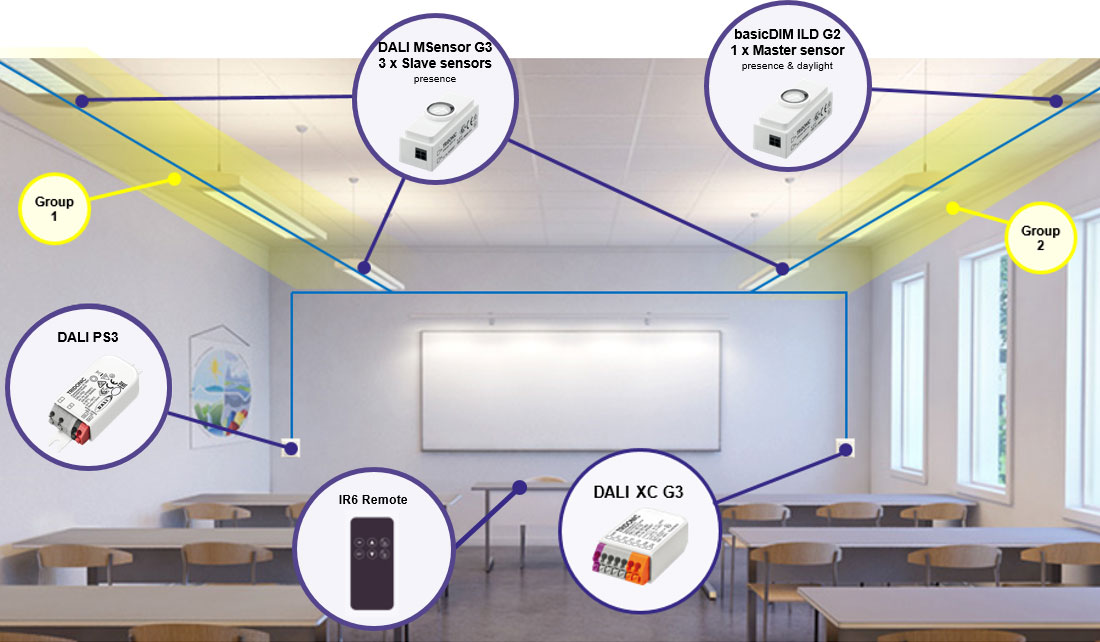

Room
- Master/slave system
- Daylight depended group lighting
- Presence detection
- Manual control unit or remote
Generation 1 – at a glance#gen1
- Compact dimensions for luminaire installation
- Ambient light sensors with motion detector and separate control unit
- Control unit with 2 DALI/DSI output channels with adjustable negative offset
- Can be remote controlled
- DGC G1:
- For up to 20 DSI or DALI devices (max. 10 per output channel)
- 2 switch inputs for on/off switching and dimming
- Individual adjustment of the parameters with basicDIM DGC Programmer or software masterCONFIGURATOR
- 1 relais output
- DALI input
- Sensor input for up to 4 basicDIM DGC sensors
- Max. installation height 5 m
