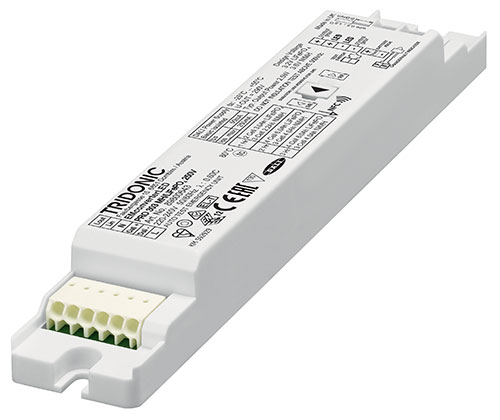

EM converterLED PRO NFC MH/LiFePO4 250 V

Powered DALI PRO NFC version

  • Note: Supply of control gear with duration link in 3 hours position. Duration link must be set before battery and mains connection.

    Note: Supply of control gear with duration link in 3 hours position. Duration link must be set before battery and mains connection.

Product description

  • Self-contained emergency lighting LED driver with DALI interface and automatic test function
  • For LED modules with a forward voltage of 48 – 250 V
  • For luminaire installation
  • EM = Emergency
  • Nominal lifetime up to 100,000 h
  • 5 years guarantee

Functions

  • Non maintained operation
  • Integrated DALI bus power supply
  • 1, 2 or 3 h rated duration selectable with duration link
  • Compatible with most constant current LED drivers (see data sheet, LED driver compatibility)
  • 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver
  • Constant power output
  • Two-colour status display LED
  • Black Box data recording

Interfaces

  • DALI interface for controlled testing and monitoring
  • Near field communication (NFC)

Battery management

  • NiMH/LiFePO4:
  • Intelligent charge system
  • Deep discharge protection
  • Polarity reversal protection for battery via polarised connector plug
  • Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries)
  • LiFePO4:
  • Tridonic LiFeGuard ensures safety in use (refer to data sheet, Safety LiFePO4)
  • Temperature protection

Batteries

  • NiMH or LiFePO4 batteries
  • NiMH: 4 years design life / 1 year guarantee
  • LiFePO4: 4 – 8 years design life / 4 years guarantee
  • LiFePO4 batteries with Tridonic LiFeGuard
  • For battery compatibility refer to data sheet, battery selection
Autoscroll for tables
Ordering data
Type Article number Rated du­ra­tion Packaging, carton Packaging, pallet Weight per pc. Dimensions
L x W x H
EM converterLED PRO 303 MH/LiFePO4 250V 89800643 1/2/3 h 10 pc(s). 1,600 pc(s). 0.075 kg 179 x 30 x 21 mm
EM converterLED PRO 304 MH/LiFePO4 250V 89800644 1/2/3 h 10 pc(s). 1,600 pc(s). 0.075 kg 179 x 30 x 21 mm
EM converterLED PRO 305 MH/LiFePO4 250V 89800645 1/2/3 h 10 pc(s). 1,600 pc(s). 0.075 kg 179 x 30 x 21 mm
Approval marks:
NFC
DALI
BSI
130
EL-T
doppelte Isolierung
EAC
RCM
CE
UKCA
ENEC
RoHs
Technical data
Rated supply voltage 220 – 240 V
AC voltage range 198 – 264 V
Mains frequency 50 / 60 Hz
Forward voltage range LED module 48 – 250 V
Output current Refer to data sheet
Starting time < 0.5 s from detection of emergency event
Overvoltage protection 320 V (for 48 h)
U-OUT (including open- / short-circuit and double load) 300 V
Max. open circuit voltage 300 V
Ambient temperature ta -25 ... +55 °C
Max. casing temperature tc 80 °C
Mains voltage changeover threshold According to EN 60598-2-22
Mains surge capability (between L - N) 1 kV
Mains surge capability (between L/N - PE) 2 kV
Integrated DALI bus power supply IPS 50 mA
Type of protection IP20
Functional test Weekly 5s test
Duration test Yearly 1 h / 2 h / 3 h test
Lifetime up to 100,000 h
Guarantee 5 Year(s)
Dimensions L x W x H 179 x 30 x 21 mm
Autoscroll for tables
Specific technical data
Type Battery technology Rated duration Typ. λ (at 230 V, 50 Hz) Typ. output power P emergency Mains current in charging operation Mains power in charging operation
Initial charge (1) Fast re­charge (1) Trickle charge (2) (1) Initial charge (1) Fast re­charge (1) Trickle charge (2) (1)
EM converterLED PRO 303 MH/LiFePO4 250V NiMH 1 h 0.6C 2.5 W 17 mA 20 mA 17 / 12 mA 2.3 W 2.8 W 2.3 / 1.6 W
EM converterLED PRO 303 MH/LiFePO4 250V NiMH 2 h 0.6C 2.5 W 24 mA 25 mA 20 / 12 mA 3.2 W 3.4 W 2.7 / 1.6 W
EM converterLED PRO 303 MH/LiFePO4 250V NiMH 3 h 0.6C 2.5 W 24 mA 25 mA 20 / 12 mA 3.2 W 3.4 W 2.7 / 1.6 W
EM converterLED PRO 303 MH/LiFePO4 250V LiFePO4 1 h 0.6C 2.5 W 22 mA 22 mA 22 / 12 mA 3.0 W 3.0 W 3.0 / 1.6 W
EM converterLED PRO 303 MH/LiFePO4 250V LiFePO4 2 h 0.6C 2.5 W 27 mA 27 mA 27 / 12 mA 4.0 W 4.0 W 4.0 / 1.6 W
EM converterLED PRO 303 MH/LiFePO4 250V LiFePO4 3 h 0.6C 2.5 W 27 mA 27 mA 27 / 12 mA 4.0 W 4.0 W 4.0 / 1.6 W
EM converterLED PRO 304 MH/LiFePO4 250V NiMH 1 h 0.6C 3.5 W 18 mA 22 mA 18 / 12 mA 2.5 W 3.1 W 2.5 / 1.6 W
EM converterLED PRO 304 MH/LiFePO4 250V NiMH 2 h 0.6C 3.5 W 26 mA 27 mA 22 / 12 mA 3.8 W 4.1 W 3.0 / 1.6 W
EM converterLED PRO 304 MH/LiFePO4 250V NiMH 3 h 0.6C 3.5 W 26 mA 27 mA 22 / 12 mA 3.8 W 4.1 W 3.0 / 1.6 W
EM converterLED PRO 304 MH/LiFePO4 250V LiFePO4 1 h 0.6C 3.5 W 22 mA 22 mA 22 / 12 mA 3.0 W 3.0 W 3.0 / 1.6 W
EM converterLED PRO 304 MH/LiFePO4 250V LiFePO4 2 h 0.6C 3.5 W 27 mA 27 mA 27 / 12 mA 4.0 W 4.0 W 4.0 / 1.6 W
EM converterLED PRO 304 MH/LiFePO4 250V LiFePO4 3 h 0.6C 3.5 W 27 mA 27 mA 27 / 12 mA 4.0 W 4.0 W 4.0 / 1.6 W
EM converterLED PRO 305 MH/LiFePO4 250V NiMH 1 h 0.6C 4.5 W 20 mA 24 mA 20 / 12 mA 2.8 W 3.5 W 2.8 / 1.6 W
EM converterLED PRO 305 MH/LiFePO4 250V NiMH 2 h 0.6C 4.5 W 28 mA 30 mA 24 / 12 mA 4.4 W 4.7 W 3.3 / 1.6 W
EM converterLED PRO 305 MH/LiFePO4 250V NiMH 3 h 0.6C 4.5 W 28 mA 30 mA 24 / 12 mA 4.4 W 4.7 W 3.3 / 1.6 W
EM converterLED PRO 305 MH/LiFePO4 250V LiFePO4 1 h 0.6C 4.5 W 22 mA 22 mA 22 / 12 mA 3.0 W 3.0 W 3.0 / 1.6 W
EM converterLED PRO 305 MH/LiFePO4 250V LiFePO4 2 h 0.6C 4.5 W 27 mA 27 mA 27 / 12 mA 4.0 W 4.0 W 4.0 / 1.6 W
EM converterLED PRO 305 MH/LiFePO4 250V LiFePO4 3 h 0.6C 4.5 W 27 mA 27 mA 27 / 12 mA 4.0 W 4.0 W 4.0 / 1.6 W
Document Size Date

EM_converterLED_PRO_NF_MH_LiFePO4_250V_en.pdf
Data sheet 		2.69 MB 30/05/2023
Functional_Description_PRO_DALI_Emergency_Devices_en.pdf
Functional Description PRO DALI Emergency Devices 		1.27 MB 03/05/2023
Certificates / declarations of conformity
Type      Article number      Certificates
Certificates ()

Certificates for ()

Document      Country      Size      Date of issue
new

Test switch EM3 Accessories

Approval marks:
RoHs

Product description

  • For connection to the emergency lighting unit
  • For checking the device function
  • Plug connection
  • Dielectric strength: 1,500 V AC for 60 seconds
Ordering data
Type Article number Packaging, bag Packaging, carton Weight per pc.
Test switch EM 3 89899956 25 pc(s). 200 pc(s). 0.01 kg
CAD / RAY
Type Article number CAD Files
Test switch EM 3 89899956 CAD (1.1 MB)

Status indication bi-colour LED EM CON Accessories

Product description

  • Two-colour status display LED
  • Green: system OK, red: fault
  • Plug connection
Ordering data
Type Type Article number Packaging, bag Packaging, carton Weight per pc.
LED EM bi-colour, 1.0 m CON 89800273 25 pc(s). 200 pc(s). 0.015 kg
LED EM bi-colour, high brightness HO 1.0 m CON 89800275 25 pc(s). 200 pc(s). 0.015 kg
LED EM 2-colour, 0.6 m CON 89800474 25 pc(s). 200 pc(s). 0.009 kg
LED EM 2-colour, high brightness HO 0.6 m CON 89800475 25 pc(s). 200 pc(s). 0.009 kg
LED EM bi-colour, 0.3 m CON 89800274 25 pc(s). 200 pc(s). 0.005 kg
LED EM bi-colour, high brightness HO 0.3 m CON 89800276 25 pc(s). 200 pc(s). 0.005 kg
CAD / RAY
Type Article number CAD Files
LED EM 89800273 CAD (799.4 KB)
LED EM 89800275 CAD (799.4 KB)
LED EM 89800474 CAD (799.4 KB)
LED EM 89800475 CAD (799.4 KB)
LED EM 89800274 CAD (799.4 KB)
LED EM 89800276 CAD (799.4 KB)

Connection cable LiFePO4 Accessories

Product description

  • Extension cable for LiFePO4 batteries
  • Cable length 500 mm
  • 3-pole plug connection
Ordering data
Type Article number Packaging, bag Packaging, carton Weight per pc.
EXTENSION CABLE LiFePO4 500mm 28002461 10 pc(s). 200 pc(s). 0.01 kg

Connection cable NiMH Accessories

Product description

  • Connection cable for NiMH batteries
  • Cable length 500 mm
  • 2-pole plug connection for batteries and 3-pole plug connection for LED driver
Ordering data
Type Article number Packaging, bag Packaging, carton Weight per pc.
CONNECTION CABLE NiMH 500mm 28002462 10 pc(s). 200 pc(s). 0.015 kg
Autoscroll for tables
CAD / RAY
Type Article number CAD Files
EM converterLED PRO 303 MH/LiFePO4 250V 89800643 CAD (358.3 KB)
EM converterLED PRO 304 MH/LiFePO4 250V 89800644 CAD (358.3 KB)
EM converterLED PRO 305 MH/LiFePO4 250V 89800645 CAD (358.3 KB)
EPD
Type Article number Environmental Product Declaration (EPD)
EM converterLED PRO 303 MH/LiFePO4 250V 89800643 EPD
