Tunable White DT8 premium
Linear dimming SELV

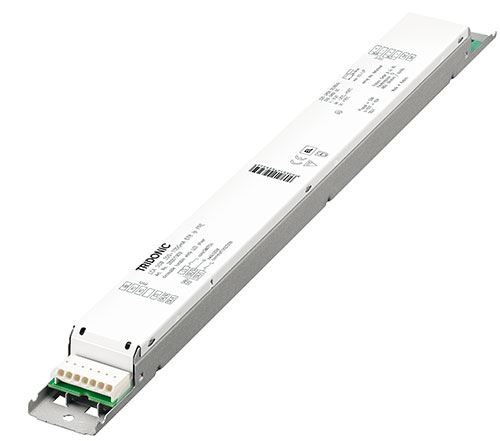

Driver LCA 50 W DT8 lp PRE
Combined with the Tunable White modules from Tridonic, the calibrated kits ensure that the colour locations remain constant throughout all dimming levels, as well as the light flow remains constant when colour changes. Other advantages are provided by the extremely high efficiency of up to 90 % and the significantly extended dimming range of 3 to 100 %. Equipped with colourSWITCH and switchDIM, the drivers also combine continuously adjustable, predefined colours and simple control.
At a glance:
- Dimmable constant current LED driver
- Adjustable output current via companionSUITE or I-SELECT 2 plugs
- Up to 2 DALI DT8 addresses (100 W)
- Dimming range 3 ... 100 % (DT8)
- Up to 90 % efficiency
- Nominal life-time up to 100,000 h
- 5-year guarantee
Products:
