  • Special LED light ceiling for Kunsthalle Mannheim

05/12/2018

LED modules for homogeneous light

Special LED light ceiling for Kunsthalle Mannheim

Products: one4all premium LED driver, Modules LLE advanced

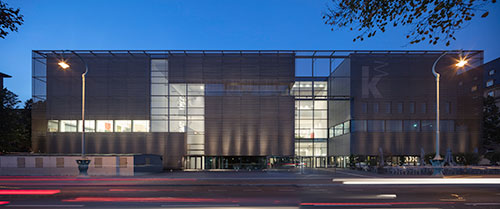

Homogeneous light from the ceiling is an integral part of the lighting concept in the new extension to the Kunsthalle Mannheim. Rentex, the light ceiling specialists, opted for LED modules and LED drivers from Tridonic.

Photo: HGEsch Photography

Photo: HGEsch Photography

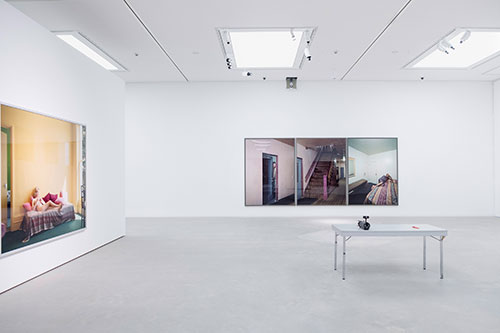

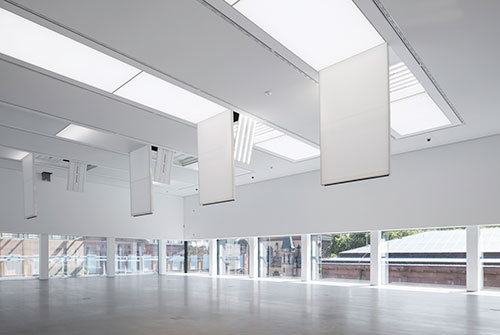

Large light ceiling panels constitute the main elements of the lighting system in all the rooms for temporary exhibitions on the ground floor and in almost all the cubes on the two upper floors

Photo: Andreas Körner

Not only the lighting solution itself but also the building systems installed in the suspended ceiling are easily accessible for maintenance purposes. The film frame and the LED carrier are hinged to reveal an inspection opening

Photo: HGEsch Photography

LED modules with high colour stability

Linear Tridonic LLE advanced LED modules and one4all premium drivers are used in the exhibition rooms. They are accommodated on large equipment carriers behind stretch-film ceiling panels. The LED modules were selected for this project on the basis of various criteria, including their narrow binning. This means that there are no visible spectral differences between the individual modules – a prerequisite for homogeneous light distribution. Tridonic technology also ensures colour stability of the LEDs when dimmed. The luminous flux can be regulated without any perceptible colour shift.

Opal cover

By combining 24 mm wide LED modules of type LLE G4 in different lengths and different light outputs and with a colour temperature of 3,500 K, the equipment carriers could be populated so that the light from the ceiling panels is homogeneous. A linear opal plastic cover, available as an accessory for the LED modules, also contributes to homogeneous light.

Protection against contact

The opal cover ensures that the LEDs do not appear as individual points of light and also protects against contact as the film frame and equipment carrier are hinged. This reveals inspection openings for accessing the systems in the suspended ceiling.

Project Data
Project: Extension of the Kunsthalle Mannheim, www.kuma.art
Architects: Gerkan, Marg und Partner (gmp), www.gmp-architekten.de
Client: Stiftung Kunsthalle Mannheim, www.kuma.art
Lighting design: a.g Licht – Gesellschaft von Ingenieuren für Lichtplanung b.R., www.aglicht.de
Background lighting/light ceiling panels: Rentex Wand- und Deckensysteme GmbH, www.rentex-systeme.de
LED technology for light ceiling panels: Tridonic, Dornbirn
Exhibit lighting: Zumtobel
Facade lighting: iGuzzini
Used equipment: Modules LLE advanced
one4all premium LED driver
