EM powerLED BASIC 1 – 2 W
Combined emergency lighting LED driver 1 – 4 W
-
Screw-fix
-
Clip-fix
-
Screw-fix
-
Clip-fix
Product description
- Emergency lighting LED driver for manual testing
- For self-contained emergency lighting
- SELV for output voltage < 60 V DC
- Low profile casing (21 x 30 mm cross-section)
- EM = Emergency
- 5 years guarantee
Properties
- Mains and emergency operation
- Constant current mode
- With either screw or clip fastening (clip-fix)
- 1, 2 or 3 h rated duration
- Selectable operating time (jumper)
- Green charge status display LED
- Output power limitation
- Automatic restart after LED replacement
- Electronic multi-level charge system
- SELV classified (outputs powerLED, battery, status LED, test switch)
- Polarity reversal protection for battery
- Deep discharge protection
- Very low energy consumption from the battery after activation of the deep discharge protection
- Short-circuit-proof battery connection
- Emergency lighting LEDs available
Batteries
- High-temperature cells 2 Ah
- NiMH batteries
- Cs cells
- 4 year design life
- 1 year guarantee
- For battery compatibility refer to data sheet
| Ordering data | ||||||
|---|---|---|---|---|---|---|
| Type | Article number | Dimensions L x W x H |
Max. number of LEDs | Packaging, carton | Packaging, pallet | Weight per pc. |
| Screw fastening version | ||||||
| EM powerLED 1 W BASIC SCREW-FIX | 89899858 | 139 x 30 x 21 mm | 1 | 25 pc(s). | 1,200 pc(s). | 0.056 kg |
| EM powerLED 2 W BASIC SCREW-FIX | 89899859 | 139 x 30 x 21 mm | 2 | 25 pc(s). | 1,200 pc(s). | 0.056 kg |
| Clip fastening version | ||||||
| EM powerLED 1 W BASIC CLIP-FIX | 89899865 | 127 x 30 x 21 mm | 1 | 25 pc(s). | 1,200 pc(s). | 0.056 kg |
| EM powerLED 2 W BASIC CLIP-FIX | 89899866 | 127 x 30 x 21 mm | 2 | 25 pc(s). | 1,200 pc(s). | 0.056 kg |
- Approval marks:
-
-
-
-
-
-
-
-
-
-
-
| Technical data | |
|---|---|
| Rated supply voltage | 220 – 240 V |
| Mains frequency | 50 / 60 Hz |
| Forward voltage range LED module (1 x LED) (1) | 2.8 – 3.4 V |
| Forward voltage range LED module (2 x LED) (1) | 5.6 – 6.8 V |
| Max. open circuit voltage | 10 V |
| Mains current, 1 W device | 30 mA |
| Mains current, 2 W device | 40 mA |
| Power in mains operation, 1 W device | 3.5 W |
| Power in mains operation, 2 W device | 5 W |
| Starting time | 0.31 s from detection of emergency event |
| Overvoltage protection | 320 V (for 1 h) |
| Battery discharge current | Refer to data sheet |
| Max. casing temperature tc | 70 °C |
| Ambient temperature ta | -25 ... +50 °C |
| Mains voltage changeover threshold | According to EN 60598-2-22 |
| Type of protection | IP20 |
| Lifetime | up to 50,000 h |
| Guarantee | 5 Year(s) |
| Specific technical data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Type | Rated duration | Typ. λ (at 230 V, 50 Hz) (1) | Typ. output power | Forward voltage range LED module | Mains current in charging operation | Mains power in charging operation | ||||
| Initial charge | Fast recharge | Trickle charge | Initial charge | Fast recharge | Trickle charge | |||||
| EM powerLED 1 W BASIC SCREW-FIX | 1 h | 0.52C | 1 W | – | 15.4 mA | 17.9 mA | 13.9 mA | 1.3 W | 1.6 W | 1.1 W |
| EM powerLED 1 W BASIC SCREW-FIX | 2 h | 0.52C | 1 W | – | 14.2 mA | 17.6 mA | 11.8 mA | 1.1 W | 1.6 W | 0.8 W |
| EM powerLED 1 W BASIC SCREW-FIX | 3 h | 0.52C | 1 W | – | 14.2 mA | 17.6 mA | 11.8 mA | 1.1 W | 1.6 W | 0.8 W |
| EM powerLED 2 W BASIC SCREW-FIX | 1 h | 0.55C | 2 W | – | 14.3 mA | 17.3 mA | 11.7 mA | 1.1 W | 1.6 W | 0.8 W |
| EM powerLED 2 W BASIC SCREW-FIX | 2 h | 0.55C | 2 W | – | 15.7 mA | 20.4 mA | 12.8 mA | 1.4 W | 2.0 W | 0.9 W |
| EM powerLED 2 W BASIC SCREW-FIX | 3 h | 0.55C | 2 W | – | 18.4 mA | 23.3 mA | 14.5 mA | 1.7 W | 2.4 W | 1.2 W |
| EM powerLED 1 W BASIC CLIP-FIX | 1 h | 0.52C | 1 W | – | 15.4 mA | 17.9 mA | 13.9 mA | 1.3 W | 1.6 W | 1.1 W |
| EM powerLED 1 W BASIC CLIP-FIX | 2 h | 0.52C | 1 W | – | 14.2 mA | 17.6 mA | 11.8 mA | 1.1 W | 1.6 W | 0.8 W |
| EM powerLED 1 W BASIC CLIP-FIX | 3 h | 0.52C | 1 W | – | 14.2 mA | 17.6 mA | 11.8 mA | 1.1 W | 1.6 W | 0.8 W |
| EM powerLED 2 W BASIC CLIP-FIX | 1 h | 0.55C | 2 W | – | 14.3 mA | 17.3 mA | 11.7 mA | 1.1 W | 1.6 W | 0.8 W |
| EM powerLED 2 W BASIC CLIP-FIX | 2 h | 0.55C | 2 W | – | 15.7 mA | 20.4 mA | 12.8 mA | 1.4 W | 2.0 W | 0.9 W |
| EM powerLED 2 W BASIC CLIP-FIX | 3 h | 0.55C | 2 W | – | 18.4 mA | 23.3 mA | 14.5 mA | 1.7 W | 2.4 W | 1.2 W |
Further information
- FAQ – Emergency lighting units (http://www.ready2mains.eu/com/en/faq-emergency.asp)
- Reference projects (http://www.ready2mains.eu/com/en/reference-projects.asp)
- Environmental declarations (http://www.ready2mains.eu/com/en/environmental-declarations.asp)
- Tender text (http://www.ready2mains.eu/com/en/tender.asp)
| Certificates / declarations of conformity | ||
| Type | Article number | Certificates |
|---|---|---|
| Certificates () | ||
Test switch EM2 Accessories
- Approval marks:
-
Product description
- For connection to the emergency lighting unit
- For checking the device function
- Dielectric strength: 1,500 V AC for 60 seconds
| Ordering data | ||||
|---|---|---|---|---|
| Type | Article number | Packaging, bag | Packaging, carton | Weight per pc. |
| Test switch EM 2 | 89805277 | 25 pc(s). | 600 pc(s). | 0.009 kg |
| CAD / RAY | ||
|---|---|---|
| Type | Article number | CAD Files |
| Test switch EM 2 | 89805277 | CAD (1009.0 KB) |
Status indication green LED EM Accessories
- Approval marks:
-
Product description
- A green LED indicates that charging current is flowing into the battery
| Ordering data | |||||
|---|---|---|---|---|---|
| Type | Type | Article number | Packaging, bag | Packaging, carton | Weight per pc. |
| LED EM | green | 89899605 | 25 pc(s). | 200 pc(s). | 0.011 kg |
| LED EM | green, ultra high brightness | 89899756 | 25 pc(s). | 200 pc(s). | 0.012 kg |
| CAD / RAY | ||
|---|---|---|
| Type | Article number | CAD Files |
| LED EM | 89899605 | CAD (579.9 KB) |
| LED EM | 89899756 | CAD (579.9 KB) |

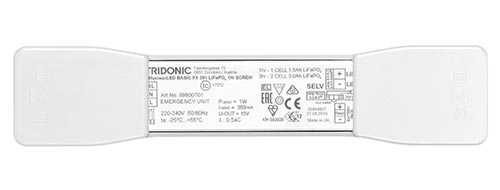

EMpLED Strain-relief set 200x43x25.5mm Accessories
- Approval marks:
-
-
Product description
- Optional strain-relief set for independent applications
- Transforms the LED driver into a fully class II compatible LED driver (e.g. ceiling installation)
- Easy and tool-free mounting to the LED driver, screwless cable-clamp channels with strain-relief (200 x 43 x 25.5 mm)
