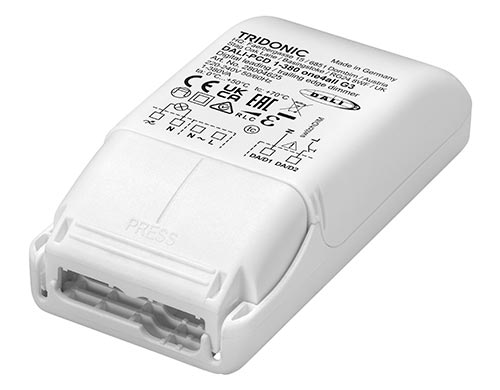

DALI PCD 1-380 one4all G3 NEW
DALI actuator
Product description
- Digital leading-edge and trailing-edge phase dimmer
- Total connected load: 1 – 380 VA
- one4all input: DALI, DSI, switchDIM and corridorFUNCTION input
- Zero cross switching supported
- 1 dimmed phase (output)
- With automatic load detection
- Surface-mounted casing
- Suitable for operation with LED retrofit bulbs
- 5 years guarantee
| Ordering data | |||
|---|---|---|---|
| Type | Article number | Packaging, carton | Weight per pc. |
| DALI-PCD 1-380 one4all G3 | 28004625 | 25 pc(s). | 0.085 kg |
- Approval marks:
-
-
-
-
-
-
-
-
| Technical data | |
|---|---|
| Rated supply voltage | 220 – 240 V |
| Mains frequency | 50 / 60 Hz |
| Connected load | 1 – 380 VA |
| Power loss | 0.6 W (1.8 W at full load) |
| Ambient temperature ta | 0 ... +50 °C |
| Storage temperature ts | -20 ... +50 °C |
| Humidity | 0 ... 95 % |
| Type of protection | IP20 |
| Dimensions L x W x H | 101.5 x 51 x 29.5 mm |
| Specific technical data | |||||||
|---|---|---|---|---|---|---|---|
| Type | Inputs | Outputs | Terminals | ||||
| Input, DALI / DSI control input / switchDIM and corridorFUNCTION | Current draw | Number of DALI addresses | Dimmed phase | Control range, DSI | Control range, DALI | ||
| DALI-PCD 1-380 one4all G3 | 1 | 2 mA from DALI | 1 | 1 | 1 – 100 % | 0.1 – 100 % | 0.5 – 1.5 mm² |
| Certificates / declarations of conformity | ||
| Type | Article number | Certificates |
|---|---|---|
| Certificates () | ||
