Modules CLE premium
-
CLE 261mm 4600lm 927-965 4T PRE2
-
CLE 401mm 2450lm 927-965 4T PRE2
-
CLE 541mm 900lm 927-965 4T PRE2
-
CLE 261mm 1150lm 927-965 4T PRE2 QTY4
Product description
- Ideal for round shaped ceiling and pendant luminaires
- Optimal solution for Tunable White applications together with LCA PRE DT8 or 2 channel low profile LED drivers

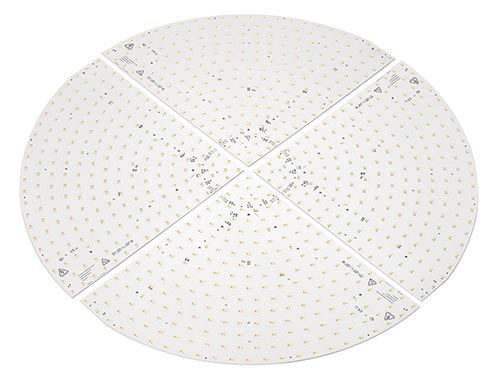

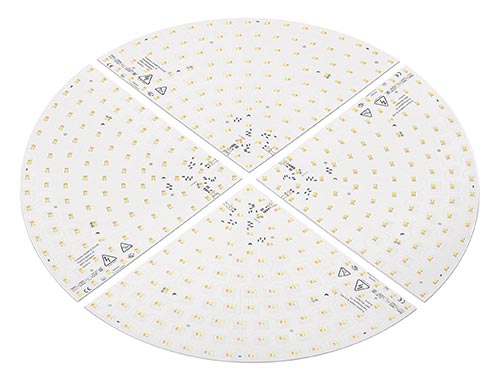

- This article contains 4 slices of CLE 261 / 401 or 8 slices CLE 541 to equip one luminaire of 360 degrees
- Long lifetime up to 50,000 hours
- 5 years guarantee
Optical properties
- Circular Tunable White LED module with 2,700 and 6,500 K SMT packages
- Efficacy of the LED module up to 198 lm/W at 6,500 K, Irated and tp = 45 °C
- High colour rendering index CRI > 90
- Small colour tolerance (MacAdam 3) (1)
- Low tolerances for luminous flux
| Ordering data | ||||
|---|---|---|---|---|
| Type | Article number | Colour temperature | Packaging, carton | Weight per pc. |
| CLE 261mm 1150lm 927-965 4T PRE2 QTY4 | 28004931 | 2,700 K | 1 pc(s). | 0.632 kg |
| CLE 401mm 2450lm 927-965 4T PRE2 QTY4 | 28004932 | 2,700 K | 1 pc(s). | 1.412 kg |
| CLE 541mm 900lm 927-965 4T PRE2 QTY8 | 28004933 | 2,700 K | 1 pc(s). | 1.176 kg |
- Luminaire types:
-
-
-
- Approval marks:
-
-
-
-
| Technical data | |
|---|---|
| Beam characteristic | 120° |
| Ambient temperature ta | -25 ... +55 °C |
| tp rated | 45 °C |
| tc | 95 °C |
| Irated for TW CLE 261mm | 150 mA |
| Irated for TW CLE 401mm | 350 mA |
| Irated for TW CLE 541mm | 150 mA |
| Imax for TW CLE 261mm | 220 mA |
| Imax for TW CLE 401mm | 550 mA |
| Imax for TW CLE 541mm | 220 mA |
| Max. permissible LF current ripple for TW CLE 261mm | 245 mA |
| Max. permissible LF current ripple for TW CLE 401mm | 605 mA |
| Max. permissible LF current ripple for TW CLE 541mm | 245 mA |
| Max. permissible peak current for TW CLE 261mm | 500 mA / max. 10 ms |
| Max. permissible peak current for TW CLE 401mm | 1,000 mA / max. 10 ms |
| Max. permissible peak current for TW CLE 541mm | 500 mA / max. 10 ms |
| Max. working voltage for insulation SELV | 60 V |
| Insulation test voltage | 0.5 kV |
| ESD classification | Severity level 1 |
| Risk group (IEC 62471) | RG0 (IEC 62471), RG2 (Ethr = 200 lx, dthr = 395 mm, IEC 62778) |
| Classification acc. to IEC 62031 | Built-in |
| Type of protection | IP00 |
| Lumen maintenance L70B50 | 50,000 h |
| Guarantee | 5 Year(s) |
| Specific technical data | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Article number | Colour temperature | Photometric code (1) | Useful luminous flux at tp = 25 °C (2) | Expected luminous flux at tp rated (3) | Typ. forward current | Min. forward voltage at tp rated | Max. forward voltage at tp = 25 °C | Power consumption Pon at tp = 25 °C (4) | Efficacy of the module at tp = 25 °C | Expected efficacy of the module at tp rated | Colour rendering index CRI |
| CLE 261mm 1150lm 927-965 4T PRE2 QTY4 | 28004931 | 2,700 K | 927/349 | 1,090 lm | 1,080 lm | 150 mA | 39.9 V | 43.5 V | 6.3 W | 173 lm/W | 174 lm/W | >90 |
| CLE 261mm 1150lm 927-965 4T PRE2 QTY4 | 28004931 | 6,500 K | 965/349 | – | 1,230 lm | 150 mA | 39.9 V | 43.5 V | – | – | 198 lm/W | >90 |
| CLE 401mm 2450lm 927-965 4T PRE2 QTY4 | 28004932 | 2,700 K | 927/349 | 2,385 lm | 2,345 lm | 350 mA | 37.6 V | 41.1 V | 13.8 W | 173 lm/W | 171 lm/W | >90 |
| CLE 401mm 2450lm 927-965 4T PRE2 QTY4 | 28004932 | 6,500 K | 965/349 | – | 2,670 lm | 350 mA | 37.6 V | 41.1 V | – | – | 195 lm/W | >90 |
| CLE 541mm 900lm 927-965 4T PRE2 QTY8 | 28004933 | 2,700 K | 927/349 | 885 lm | 880 lm | 150 mA | 32.4 V | 35.4 V | 5.1 W | 174 lm/W | 173 lm/W | >90 |
| CLE 541mm 900lm 927-965 4T PRE2 QTY8 | 28004933 | 6,500 K | 965/349 | – | 1,000 lm | 150 mA | 32.4 V | 35.4 V | – | – | 196 lm/W | >90 |
- (1) The detailed explanation, see data sheet section 1.1.
- (2) Tolerance of useful light flux - 0 % / + 15 %. Measurement uncertainty ± 10 %.
- (3) Tolerance of expected light flux - 0 % / + 15 %. Measurement uncertainty ± 10 %. Based on calculation.
- (4) Tolerance of power consumption Pon ± 10 %. Measurement uncertainty ± 5 %.
- CLE 401mm 2450lm 927-965 4T PRE2 QTY4
-
- CLE 541mm 900lm 927-965 4T PRE2 QTY8
-
