NiCd Battery pack 1.8 – 4.5 Ah
Nickel-Cadmium cells (NiCd)
-
Battery pack 4.5 Ah; 5/6 cells
-
Battery pack 4.5 Ah; 3/4 cells
-
Battery pack 1.8 Ah; 3/4 cells
-
Battery pack 4.5 Ah; 5/6 cells
Product description
- High-temperature NiCd battery pack for use with emergency lighting units
- 4 year design life
- 1 year guarantee from delivery date
Properties
- Constant high-temperature operation
- Temperature depending on the used emergency lighting unit (refer to respective emergency control gear data sheet)
- Good charging properties at high temperature
- High energy maintenance of the charged battery
- Certified quality manufacturer
- Casing material made of polycarbonate
- 1.0 m integrated double-insulated cable
- 1.0 mm² solid wire, pre-stripped
- Suitable for emergency lighting equipment as per IEC 60598-2-22
| Ordering data | ||||
|---|---|---|---|---|
| Type | Article number | Packaging, carton | Packaging, outer box | Weight per pc. |
| Battery pack 1.8 Ah with connector | ||||
| Pack-NiCd 3C CON | 28001221 | 5 pc(s). | 10 pc(s). | 0.270 kg |
| Pack-NiCd 4C CON | 28001222 | 5 pc(s). | 10 pc(s). | 0.320 kg |
| Battery pack 4.5 Ah with connector | ||||
| Pack-NiCd 3D CON | 89800389 | 5 pc(s). | 10 pc(s). | 0.534 kg |
| Pack-NiCd 4D CON | 89800390 | 5 pc(s). | 10 pc(s). | 0.661 kg |
| Pack-NiCd 5D CON | 28001181 | 5 pc(s). | 5 pc(s). | 0.840 kg |
| Pack-NiCd 6D CON | 89800391 | 5 pc(s). | 5 pc(s). | 0.990 kg |
| Technical data | |
|---|---|
| Battery voltage per cell | 1.2 V |
| Battery case temperature (design life of 4 years) | 45 °C |
| Ambient temperature range | +5 ... +40 °C |
| Specific technical data | ||||
|---|---|---|---|---|
| Type | Article number | Number of cells | Capacity | Dimensions L x W x H |
| Battery pack 4.5 Ah with connector | ||||
| Pack-NiCd 5D CON | 28001181 | 5 | 4.5 Ah | 216 x 70 x 37 mm |

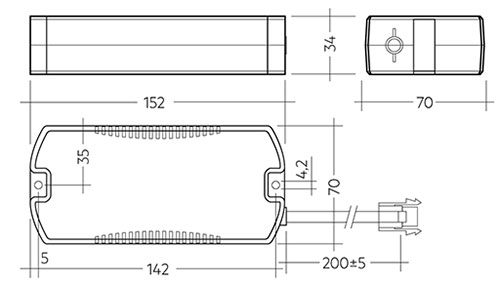

| Pack-NiCd 3D CON | 89800389 | 3 | 4.5 Ah | 152 x 70 x 34 mm |
| Pack-NiCd 4D CON | 89800390 | 4 | 4.5 Ah | 152 x 70 x 34 mm |
| Pack-NiCd 6D CON | 89800391 | 6 | 4.5 Ah | 216 x 70 x 37 mm |
| Battery pack 1.8 Ah with connector | ||||
| Pack-NiCd 3C CON | 28001221 | 3 | 1.8 Ah | 119 x 50 x 25 mm |
| Pack-NiCd 4C CON | 28001222 | 4 | 1.8 Ah | 119 x 50 x 25 mm |
