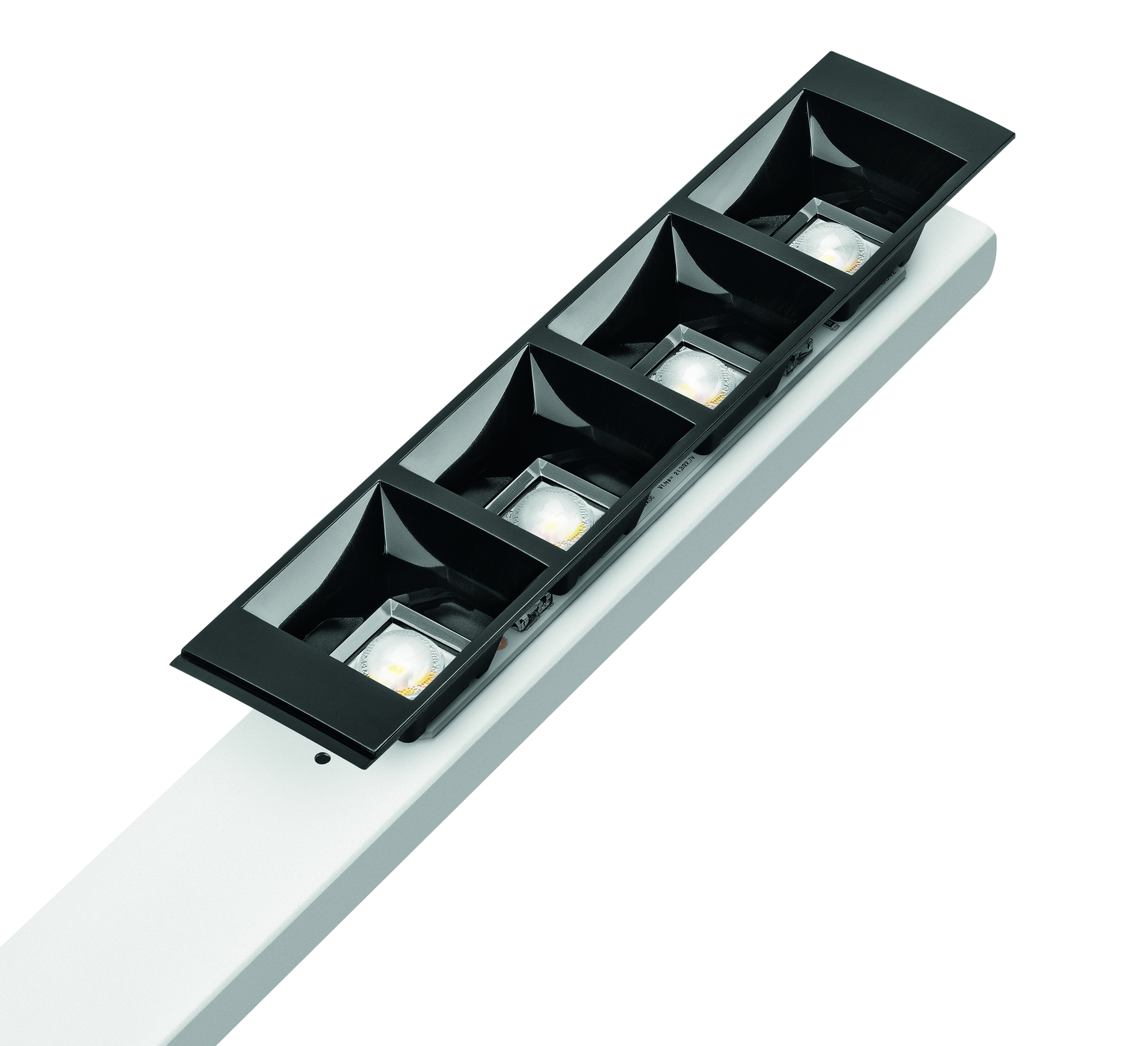

LED modules for LEDiL DAISY lenses

The LED modules, SELV LED drivers and LEDiL lenses work together in such a way that glare-free office lighting is easy to achieve. The key to this simple, user-friendly lighting solution is the fact that the arrangement of the LED chips on the LED module is tailored precisely to the lenses. The result is glare-free light (UGR<19) with a darklight character offering high visual comfort and meeting all the requirements for compliant office and workplace lighting.


Flexible combinations

The 24 mm LLE modules are available in versions for tunable white with correlated colour temperatures from 2,700 to 6,500 K and for static white with CCT’s of 3,000 and 4,000 K. They are supplied in lengths of 140 mm, 280 mm, 560 mm and 1120 mm and achieve a typical luminous flux of 400, 750, 1,500 or 3,500 lm. System efficiency is 184 lm/W (static white) and 170 lm/W (tunable white). Module efficiency is up to 200 lm/W. The LED modules can be combined with a high degree of flexibility. They can be used in a wide variety of luminaires, from single units to complete light lines. Wiring and installation are easy thanks to terminals, which can be wired from the front or at the back and enabling module to module connection.

Both versions offer high quality of light and very long life of 72,000 hours. The colour rendering index is Ra > 80 with narrow colour tolerances (MacAdam 3).

The manufacturer offers a 5-year guarantee.
