Homogeneous light from the reel

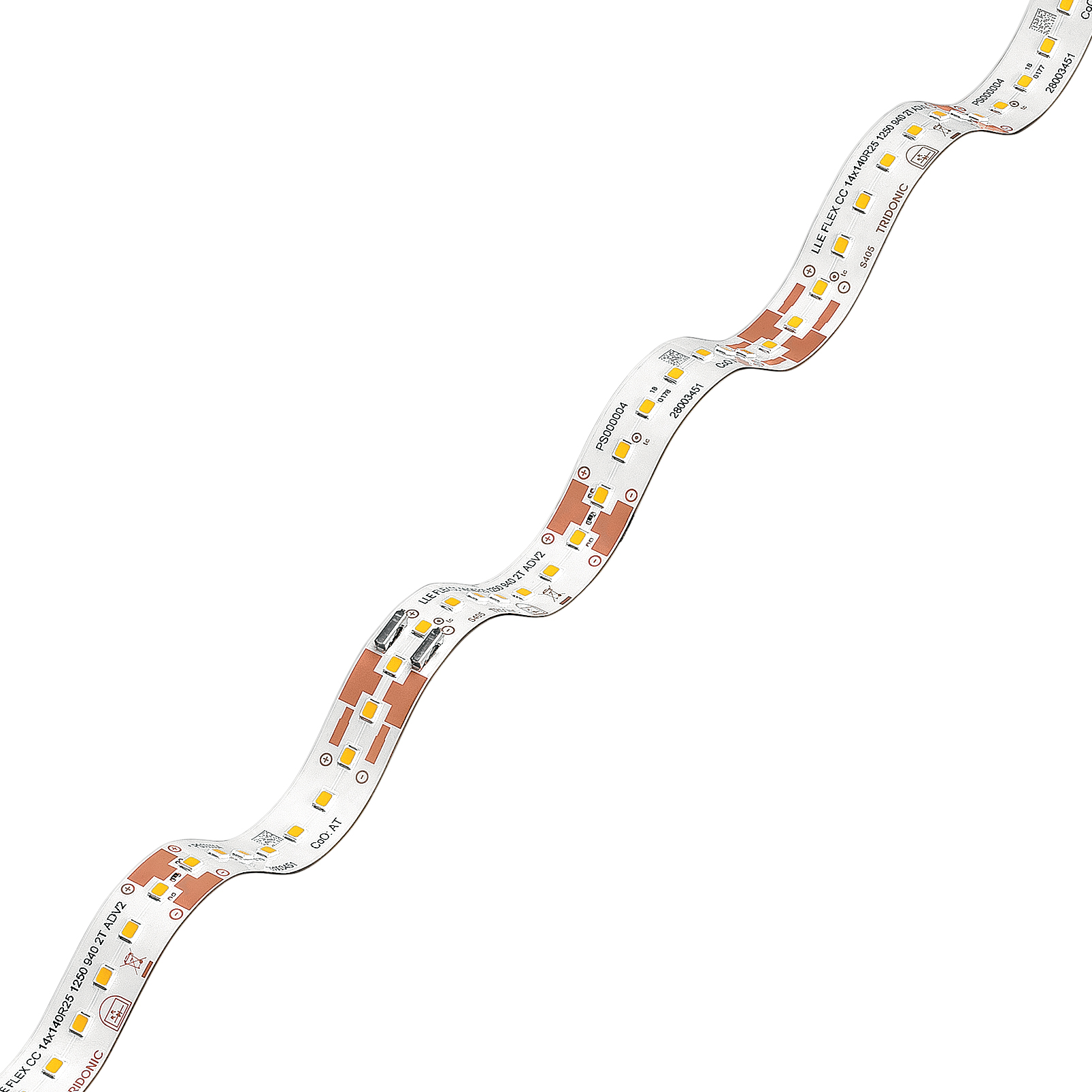

The second module generation of flexible LED strips needs no solder joints and is equipped with 16 powerful LEDs in every 140 mm segment. Small pitch spacings ensure homogeneous light of excellent quality. The flexible material of the LED strips and the adjustable length allow luminaires to be fitted with oval, round or free-form strips. With the option of making a cut every 140 millimetres, the module can always be made to the desired length. Logistics and production costs can thus be significantly reduced.


The flexible LED modules can be wired by means of simple soldering or WAGO low-profile terminals. The terminals are pre-assembled every 280 mm and enable particularly fast wiring with no unwanted shadow effects. Integration in the luminaire is really easy thanks to stable, weather-resistant 3M 93015LE adhesive tape.

Wide range of applications

With colour temperatures of 2,700 K, 3,000 K, 3,500 K and 4,000 K and adjustable light output, the strips can meet very different lighting requirements. Depending on the colour temperature, the colour rendering index Ra is >80 or >90, with narrow colour tolerances (MacAdam 3). The new LED strips have a module efficacy of up to 206 lm/W. High-quality PCB and heat-conducting material ensures reliable operation even under extreme conditions over the entire lifetime of 72,000 hours. The manufacturer offers a 5-year guarantee.
