Module LLE 20x280-560mm 775lm HV SNC3

Modules LLE essence

  • LLE 20x280mm 775lm HV SNC3

    LLE 20x280mm 775lm HV SNC3

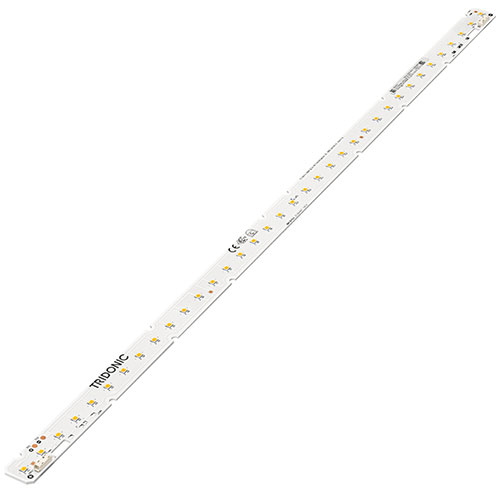

  • LLE 20x560mm 1550lm HV SNC3

    LLE 20x560mm 1550lm HV SNC3

  • LLE 20x280mm 775lm HV SNC3

    LLE 20x280mm 775lm HV SNC3

  • LLE 20x560mm 1550lm HV SNC3

    LLE 20x560mm 1550lm HV SNC3

Product description

  • Optimal solution for linear and panel lights where cost is main priority, together with the new LC lp SNC and ADV LED driver provides best system efficiency
  • 2 terminals for serial wiring
  • Perfectly uniform light, even if several LED modules are used together in a line
  • Push terminals for quick and simple wiring of LED module to LED module
  • HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output
  • Long lifetime up to 72,000 hours
  • 5 years guarantee

Optical properties

  • Colour temperatures 3,000, 4,000 and 6,500 K
  • Useful luminous flux 1,750 lm at Irated and tp = 25 °C
  • Efficacy of the LED module 172 lm/W at Irated and tp = 25 °C
  • High colour rendering index CRI > 80
  • Small colour tolerance (MacAdam 3) (1)
  • Small luminous flux tolerances

Mechanical properties

  • Module dimension 20 x 280 mm and 20 x 560 mm
  • Simple installation (e.g. screws)
Autoscroll for tables
Ordering data
Type Article number Colour tempera­ture Packaging, carton Weight per pc.
LLE 20x280mm 775lm 830 HV SNC3 28002913 3,000 K 180 pc(s). 0.015 kg
LLE 20x280mm 775lm 840 HV SNC3 28002914 4,000 K 180 pc(s). 0.018 kg
LLE 20x280mm 775lm 865 HV SNC3 28002915 6,500 K 180 pc(s). 0.018 kg
LLE 20x560mm 1550lm 830 HV SNC3 28002916 3,000 K 180 pc(s). 0.036 kg
LLE 20x560mm 1550lm 840 HV SNC3 28002917 4,000 K 180 pc(s). 0.036 kg
LLE 20x560mm 1550lm 865 HV SNC3 28002918 6,500 K 180 pc(s). 0.036 kg
Luminaire types:
Recessed floor & wallmounted luminaires
Free-standing luminaires
Linear luminaires
Wide-area luminaires (in-built, remote, pendant)
Approval marks:
ESD
CE
UKCA
ENEC
RoHs
Technical data
Beam characteristic 120°
Ambient temperature ta -40 ... +65 °C
tp rated 50 °C
tc 90 °C
Irated 300 mA
Imax 540 mA
Max. permissible LF current ripple 600 mA
Max. permissible peak current 900 mA / max. 10 ms
Max. working voltage for insulation (1) 400 V
Insulation test voltage 1.8 kV
CTI of the printed circuit board ≥ 600
ESD classification Severity level 2
Risk group (IEC 62471) (2) RG1
Classification acc. to IEC 62031 Built-in
Type of protection IP00
Lumen maintenance L70B50 72,000 h
Guarantee 5 Year(s)
Autoscroll for tables
Specific technical data
Type Article number Photo­metric code Useful luminous flux at tp = 25 °C (1) Expected luminous flux at tp rated (2) Typ. forward current Min. forward voltage at tp rated Max. forward voltage at tp = 25 °C Power con­sump­tion Pon at tp = 25 °C (3) Efficacy of the module at tp = 25 °C Expected efficacy of the module at tp rated Col­our ren­der­ing in­dex CRI
Operating mode HE at 200 mA
LLE 20x280mm 775lm 830 HV SNC3 28002913 830/359 – 530 lm 200 mA 15.1 V 17.9 V – – 163 lm/W > >80
LLE 20x280mm 775lm 840 HV SNC3 28002914 840/359 – 560 lm 200 mA 15.1 V 17.9 V – – 172 lm/W > >80
LLE 20x280mm 775lm 865 HV SNC3 28002915 865/359 – 560 lm 200 mA 15.1 V 17.9 V – – 172 lm/W > >80
LLE 20x560mm 1550lm 830 HV SNC3 28002916 830/359 – 1,070 lm 200 mA 30.3 V 35.7 V – – 164 lm/W > >80
LLE 20x560mm 1550lm 840 HV SNC3 28002917 840/359 – 1,130 lm 200 mA 30.3 V 35.7 V – – 173 lm/W > >80
LLE 20x560mm 1550lm 865 HV SNC3 28002918 865/359 – 1,130 lm 200 mA 30.3 V 35.7 V – – 173 lm/W > >80
Operating mode HE at 250 mA
LLE 20x280mm 775lm 830 HV SNC3 28002913 830/359 – 660 lm 250 mA 15.3 V 18.2 V – – 160 lm/W > >80
LLE 20x280mm 775lm 840 HV SNC3 28002914 840/359 – 700 lm 250 mA 15.3 V 18.2 V – – 169 lm/W > >80
LLE 20x280mm 775lm 865 HV SNC3 28002915 865/359 – 700 lm 250 mA 15.3 V 18.2 V – – 169 lm/W > >80
LLE 20x560mm 1550lm 830 HV SNC3 28002916 830/359 – 1,330 lm 250 mA 30.8 V 36.3 V – – 161 lm/W > >80
LLE 20x560mm 1550lm 840 HV SNC3 28002917 840/359 – 1,400 lm 250 mA 30.8 V 36.3 V – – 169 lm/W > >80
LLE 20x560mm 1550lm 865 HV SNC3 28002918 865/359 – 1,400 lm 250 mA 30.8 V 36.3 V – – 169 lm/W > >80
Operating mode NM at 300 mA
LLE 20x280mm 775lm 830 HV SNC3 28002913 830/359 830 lm 780 lm 300 mA 15.5 V 18.4 V 5.1 W 163 lm/W 155 lm/W > >80
LLE 20x280mm 775lm 840 HV SNC3 28002914 840/359 870 lm 830 lm 300 mA 15.5 V 18.4 V 5.1 W 171 lm/W 165 lm/W > >80
LLE 20x280mm 775lm 865 HV SNC3 28002915 865/359 870 lm 830 lm 300 mA 15.5 V 18.4 V 5.1 W 171 lm/W 165 lm/W > >80
LLE 20x560mm 1550lm 830 HV SNC3 28002916 830/359 1,660 lm 1,570 lm 300 mA 31.2 V 36.8 V 10.2 W 163 lm/W 156 lm/W > >80
LLE 20x560mm 1550lm 840 HV SNC3 28002917 840/359 1,750 lm 1,660 lm 300 mA 31.2 V 36.8 V 10.2 W 172 lm/W 165 lm/W > >80
LLE 20x560mm 1550lm 865 HV SNC3 28002918 865/359 1,750 lm 1,660 lm 300 mA 31.2 V 36.8 V 10.2 W 172 lm/W 165 lm/W > >80
Operating mode NM at 350 mA
LLE 20x280mm 775lm 830 HV SNC3 28002913 830/359 – 900 lm 350 mA 15.8 V 18.7 V – – 152 lm/W > >80
LLE 20x280mm 775lm 840 HV SNC3 28002914 840/359 – 950 lm 350 mA 15.8 V 18.7 V – – 160 lm/W > >80
LLE 20x280mm 775lm 865 HV SNC3 28002915 865/359 – 950 lm 350 mA 15.8 V 18.7 V – – 160 lm/W > >80
LLE 20x560mm 1550lm 830 HV SNC3 28002916 830/359 – 1,820 lm 350 mA 31.6 V 37.3 V – – 153 lm/W > >80
LLE 20x560mm 1550lm 840 HV SNC3 28002917 840/359 – 1,910 lm 350 mA 31.6 V 37.3 V – – 161 lm/W > >80
LLE 20x560mm 1550lm 865 HV SNC3 28002918 865/359 – 1,910 lm 350 mA 31.6 V 37.3 V – – 161 lm/W > >80
Operating mode HO at 400 mA
LLE 20x280mm 775lm 830 HV SNC3 28002913 830/359 – 1,020 lm 400 mA 16.0 V 18.9 V – – 148 lm/W > >80
LLE 20x280mm 775lm 840 HV SNC3 28002914 840/359 – 1,080 lm 400 mA 16.0 V 18.9 V – – 157 lm/W > >80
LLE 20x280mm 775lm 865 HV SNC3 28002915 865/359 – 1,080 lm 400 mA 16.0 V 18.9 V – – 157 lm/W > >80
LLE 20x560mm 1550lm 830 HV SNC3 28002916 830/359 – 2,060 lm 400 mA 32.0 V 37.7 V – – 150 lm/W > >80
LLE 20x560mm 1550lm 840 HV SNC3 28002917 840/359 – 2,160 lm 400 mA 32.0 V 37.7 V – – 157 lm/W > >80
LLE 20x560mm 1550lm 865 HV SNC3 28002918 865/359 – 2,160 lm 400 mA 32.0 V 37.7 V – – 157 lm/W > >80
Operating mode HO at 450 mA
LLE 20x280mm 775lm 830 HV SNC3 28002913 830/359 – 1,140 lm 450 mA 16.2 V 19.2 V – – 145 lm/W > >80
LLE 20x280mm 775lm 840 HV SNC3 28002914 840/359 – 1,200 lm 450 mA 16.2 V 19.2 V – – 153 lm/W > >80
LLE 20x280mm 775lm 865 HV SNC3 28002915 865/359 – 1,200 lm 450 mA 16.2 V 19.2 V – – 153 lm/W > >80
LLE 20x560mm 1550lm 830 HV SNC3 28002916 830/359 – 2,290 lm 450 mA 32.4 V 38.3 V – – 146 lm/W > >80
LLE 20x560mm 1550lm 840 HV SNC3 28002917 840/359 – 2,410 lm 450 mA 32.4 V 38.3 V – – 154 lm/W > >80
LLE 20x560mm 1550lm 865 HV SNC3 28002918 865/359 – 2,410 lm 450 mA 32.4 V 38.3 V – – 154 lm/W > >80
Document Size Date

Module_LLE_20x280-560mm_775lm_HV_SNC3_en.pdf
Data sheet 		2.18 MB 02/03/2023
Leaflet_LLE_EN_web.pdf
Leaflet – Module LLE
For Linear, Wide Area and Free Standing 		2.36 MB 23/03/2022
Certificates / declarations of conformity
Type      Article number      Certificates
Certificates ()

Certificates for ()

Document      Country      Size      Date of issue
new

LINEAR COVER LLE Accessories

Product description

  • LINEAR COVER for LLE
  • Protection against direct touch for non-SELV applications (recommendation LLE 20: use all fixing points and screwed Endcap, recommendation LLE 24: use all fixing points)
  • Fast snap on mounting on to LLE 20: with M4 screws and plastic washers, to LLE 24: with clips or plastic washers
  • High transmission: transparent, semi-transparent and diffuse
  • Material: PMMA
  • Tolerances: ± 1 mm for 597 mm length (ends finished), + 10 mm from length 1,150 mm (ends raw)
Ordering data
Type Article number Colour Length L Efficiency Packaging, carton Weight per pc.
LINEAR COVER SY Transparent 1600mm 28000338 Transparent 1,600 mm 94 % 12 pc(s). 0.272 kg
ACL LINEAR COVER 20x1450mm FROSTED 28004145 Semi-transparent 1,450 mm 82 % 50 pc(s). 0.343 kg
ACL LINEAR COVER 20x1150mm FROSTED 28003527 Semi-transparent 1,150 mm 82 % 50 pc(s). 0.272 kg
LINEAR COVER SY Frosted 1800mm 28000437 Semi-transparent 1,800 mm 87 % 12 pc(s). 0.308 kg
LINEAR COVER SY Frosted 1600mm 28000339 Semi-transparent 1,600 mm 87 % 12 pc(s). 0.272 kg
LINEAR COVER SY Frosted 1500mm 28000435 Semi-transparent 1,500 mm 87 % 12 pc(s). 0.244 kg
LINEAR COVER SY Frosted 1200mm 28000422 Semi-transparent 1,200 mm 87 % 12 pc(s). 0.205 kg
LINEAR COVER SY Frosted 597mm 28000340 Semi-transparent 597 mm 87 % 12 pc(s). 0.102 kg
LINEAR COVER SY Diffuse 1800mm 28000438 Diffuse 1,800 mm 76 % 12 pc(s). 0.308 kg
LINEAR COVER SY Diffuse 1600mm 28000341 Diffuse 1,600 mm 76 % 12 pc(s). 0.272 kg
LINEAR COVER SY Diffuse 1500mm 28000436 Diffuse 1,500 mm 76 % 12 pc(s). 0.257 kg
LINEAR COVER SY Diffuse 1200mm 28000434 Diffuse 1,200 mm 76 % 12 pc(s). 0.205 kg
LINEAR COVER SY Diffuse 597mm 28000342 Diffuse 597 mm 76 % 12 pc(s). 0.102 kg
CAD / RAY
Type Article number CAD Files
LINEAR COVER SY Transparent 1600mm 28000338 CAD (208.6 KB)
ACL LINEAR COVER 20x1450mm FROSTED 28004145 CAD (135.7 KB)
ACL LINEAR COVER 20x1150mm FROSTED 28003527 CAD (135.7 KB)
LINEAR COVER SY Frosted 1800mm 28000437 CAD (208.6 KB)
LINEAR COVER SY Frosted 1600mm 28000339 CAD (208.6 KB)
LINEAR COVER SY Frosted 1500mm 28000435 CAD (208.6 KB)
LINEAR COVER SY Frosted 1200mm 28000422 CAD (208.6 KB)
LINEAR COVER SY Frosted 597mm 28000340 CAD (208.6 KB)
LINEAR COVER SY Diffuse 1800mm 28000438 CAD (208.6 KB)
LINEAR COVER SY Diffuse 1600mm 28000341 CAD (208.6 KB)
LINEAR COVER SY Diffuse 1500mm 28000436 CAD (208.6 KB)
LINEAR COVER SY Diffuse 1200mm 28000434 CAD (208.6 KB)
LINEAR COVER SY Diffuse 597mm 28000342 CAD (208.6 KB)

ACL ENDCAP LLE Accessories

  • Sample image

    Sample image

Product description

  • ENDCAP for LLE
  • PUSH-FIX: Fast snap on mounting (sheet thickness 0.5 – 1.0 mm), for drilling hole 4 mm
  • SCREW-FIX: Screw mounting with EJOT Delta PT WN 5451 30x8 (not included), tightening torque 0.7 Nm
  • Clip made of polycarbonate
Ordering data
Type Article number Colour Packaging, carton Weight per pc.
ACL ENDCAP LLE20 PUSH-FIX 28004379 White 1,500 pc(s). 0.003 kg
ACL ENDCAP LLE24 PUSH-FIX 28001037 White 480 pc(s). 0.003 kg
ACL ENDCAP LLE24 SCREW-FIX 28002315 White 480 pc(s). 0.003 kg
CAD / RAY
Type Article number CAD Files
ACL ENDCAP LLE20 PUSH-FIX 28004379 CAD (426.2 KB)
ACL ENDCAP LLE24 PUSH-FIX 28001037 CAD (586.9 KB)
ACL ENDCAP LLE24 SCREW-FIX 28002315 CAD (880.3 KB)

ACL LINEAR LENS 24mm Accessories

  • ACL LINEAR LENS 24mm 60°

    ACL LINEAR LENS 24mm 60°

  • ACL LINEAR LENS 24mm 90°

    ACL LINEAR LENS 24mm 90°

  • ACL LINEAR LENS 24mm INTENSE

    ACL LINEAR LENS 24mm INTENSE

  • ACL LINEAR LENS 24mm BATWING (only for LLE 24)

    ACL LINEAR LENS 24mm BATWING (only for LLE 24)

  • ACL LINEAR LENS 24mm ASY

    ACL LINEAR LENS 24mm ASY

  • ACL LINEAR LENS 24mm DASY

    ACL LINEAR LENS 24mm DASY

  • ACL Endcap LENS 24mm PSF

    ACL Endcap LENS 24mm PSF

Product description LINEAR LENS

  • Linear lens for LLE 20 / 24
  • Available with different beam characteristics
  • Protection against direct touch for non-SELV applications (recommendation: use all fixing points)
  • Fast snap on mounting on to LLE 20: with M4 screws and plastic washers, to LLE 24: with clips or plastic washers
  • Recommendation: Fastening with screws and plastic washers, see 2.3 Heat sink specifications in data sheet
  • Material: PMMA
  • Available lengths: 1,200, 1,500 and 1,800 mm, Tolerance: + 10 mm (ends raw)
  • Max. permissible temperature 80 °C
  • Photometric data available on website

Product description Endcap

  • ENDCAP for LINEAR LENS 24mm INTENSE, ASY and DASY
  • Mounting by clipping in and screwing from below using screw EJOT Delta PT WN 5451 20x4, tightening torque 0.7 Nm
  • Made of Polyamide UL94 V0
Ordering data
Type Article number Length L Beam characteristic Efficiency Packaging, carton Weight per pc.
ACL LINEAR LENS 24x1200mm 60° 28001428 1,200 mm 60° 97 % 21 pc(s). 0.196 kg
ACL LINEAR LENS 24x1200mm 90° 28001429 1,200 mm 90° 97 % 21 pc(s). 0.165 kg
ACL LINEAR LENS 24x1500mm 60° 28000953 1,500 mm 60° 97 % 21 pc(s). 0.261 kg
ACL LINEAR LENS 24x1500mm 90° 28000955 1,500 mm 90° 97 % 21 pc(s). 0.221 kg
ACL LINEAR LENS 24x1200mm INTENSE 28002024 1,200 mm 40° 95 % 18 pc(s). 0.261 kg
ACL LINEAR LENS 24x1500mm INTENSE 28002025 1,500 mm 40° 95 % 18 pc(s). 0.326 kg
ACL LINEAR LENS 24x1800mm INTENSE 28002026 1,800 mm 40° 95 % 18 pc(s). 0.392 kg
ACL LINEAR LENS 24x1200mm ASY 28002030 1,200 mm asymmetric 95 % 18 pc(s). 0.250 kg
ACL LINEAR LENS 24x1500mm ASY 28002031 1,500 mm asymmetric 95 % 18 pc(s). 0.312 kg
ACL LINEAR LENS 24x1800mm ASY 28002032 1,800 mm asymmetric 95 % 18 pc(s). 0.375 kg
ACL LINEAR LENS 24x1200mm DASY 28002033 1,200 mm double asymmetric 92 % 18 pc(s). 0.249 kg
ACL LINEAR LENS 24x1500mm DASY 28002034 1,500 mm double asymmetric 92 % 18 pc(s). 0.311 kg
ACL LINEAR LENS 24x1800mm DASY 28002035 1,800 mm double asymmetric 92 % 18 pc(s). 0.373 kg
ACL Endcap LENS 24mm PSF 28002669 – – – 3,600 pc(s). 0.003 kg
CAD / RAY
Type Article number CAD Files Photometric files
ACL LINEAR LENS 24x1200mm 60° 28001428 CAD (195.6 KB)
ACL LINEAR LENS 24x1200mm 90° 28001429 CAD (197.6 KB)
ACL LINEAR LENS 24x1500mm 60° 28000953 CAD (195.6 KB)
ACL LINEAR LENS 24x1500mm 90° 28000955 CAD (197.6 KB)
ACL LINEAR LENS 24x1200mm INTENSE 28002024 CAD (190.6 KB) Photometric (146.6 KB)
ACL LINEAR LENS 24x1500mm INTENSE 28002025 CAD (190.6 KB) Photometric (146.6 KB)
ACL LINEAR LENS 24x1800mm INTENSE 28002026 CAD (190.6 KB) Photometric (146.6 KB)
ACL LINEAR LENS 24x1200mm ASY 28002030 CAD (190.6 KB) Photometric (146.6 KB)
ACL LINEAR LENS 24x1500mm ASY 28002031 CAD (190.6 KB) Photometric (146.6 KB)
ACL LINEAR LENS 24x1800mm ASY 28002032 CAD (190.6 KB) Photometric (146.6 KB)
ACL LINEAR LENS 24x1200mm DASY 28002033 CAD (192.6 KB) Photometric (138.6 KB)
ACL LINEAR LENS 24x1500mm DASY 28002034 CAD (192.6 KB) Photometric (138.6 KB)
ACL LINEAR LENS 24x1800mm DASY 28002035 CAD (192.6 KB) Photometric (138.6 KB)
ACL Endcap LENS 24mm PSF 28002669 CAD (300.4 KB)
Autoscroll for tables
CAD / RAY
Type Article number CAD Files Ray Files Photometric files
LLE 20x280mm 775lm 830 HV SNC3 28002913 CAD (4.6 MB) Low (140.7 MB) Medium (481.5 MB) High (1.2 GB) Photometric (6.2 KB)
LLE 20x280mm 775lm 840 HV SNC3 28002914 CAD (4.6 MB) Low (140.7 MB) Medium (481.5 MB) High (1.2 GB) Photometric (6.2 KB)
LLE 20x280mm 775lm 865 HV SNC3 28002915 CAD (4.6 MB) Low (140.7 MB) Medium (481.5 MB) High (1.2 GB) Photometric (6.2 KB)
LLE 20x560mm 1550lm 830 HV SNC3 28002916 CAD (6.4 MB) Low (140.7 MB) Medium (481.5 MB) High (1.2 GB) Photometric (6.6 KB)
LLE 20x560mm 1550lm 840 HV SNC3 28002917 CAD (6.4 MB) Low (140.7 MB) Medium (481.5 MB) High (1.2 GB) Photometric (6.6 KB)
LLE 20x560mm 1550lm 865 HV SNC3 28002918 CAD (6.4 MB) Low (140.7 MB) Medium (481.5 MB) High (1.2 GB) Photometric (6.6 KB)
EPD
Type Article number Environmental Product Declaration (EPD)
LLE 20x280mm 775lm 830 HV SNC3 28002913 EPD
LLE 20x560mm 1550lm 830 HV SNC3 28002916 EPD


Visiting from the US or Canada?
Go to our dedicated site.
http://www.tridonic.us or stay on tridonic.com
