Module ELA ADV2

Modules ELA advanced

  • ELA 600x600mm 3800lm ADV2

    ELA 600x600mm 3800lm ADV2

  • ELA 1200x300mm 3800lm ADV2

    ELA 1200x300mm 3800lm ADV2

  • ELA 600x600mm 3800lm ADV2

    ELA 600x600mm 3800lm ADV2

  • ELA 625x625mm 3800lm ADV2

    ELA 625x625mm 3800lm ADV2

Product description

  • Edgelit panel for direct recessed mount and surface or suspended mount with accessories
  • With pre-installed connection cable and integrated plug
  • For suspended ceiling grid measure of 600, 625 mm and 1,200 x 300 mm
  • IK rating IK02
  • Product colour (frame) RAL 9003
  • Diffusor material standard article: PS, diffusor material TPA article (fullfills the TPA requirements): PS
  • Lightguide material: PMMA
  • HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output
  • Orders only in full carton quantities.
  • Long lifetime: 50,000 hours
  • 5 years guarantee

Optical properties

  • Colour temperatures 3,000, 4,000 and 6,500 K
  • Useful luminous flux 4,295 lm at Irated and tp = 25 °C
  • Efficacy of the LED module 136 lm/W at Irated and tp = 25 °C
  • High colour rendering index CRI > 80
  • Small colour tolerance (MacAdam 4) (1)
  • Small luminous flux tolerances
  • UGR < 19

Mechanical properties

  • Module dimension 595 x 595 mm, 620 x 620 mm and 1,195 x 295 mm

System solution

  • Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
Autoscroll for tables
Ordering data
Type Article number Colour tempera­ture Packaging, carton Weight per pc.
ELA 600x600mm 3800lm 830 ADV2 28003274 3,000 K 5 pc(s). 2.50 kg
ELA 600x600mm 3800lm 840 ADV2 28003275 4,000 K 5 pc(s). 2.50 kg
ELA 600x600mm 3800lm 865 ADV2 28003276 6,500 K 5 pc(s). 2.50 kg
ELA 600x600mm 3800lm 830 ADV2 TPA 28003283 3,000 K 5 pc(s). 2.65 kg
ELA 600x600mm 3800lm 840 ADV2 TPA 28003284 4,000 K 5 pc(s). 2.65 kg
ELA 625x625mm 3800lm 830 ADV2 28003277 3,000 K 5 pc(s). 2.75 kg
ELA 625x625mm 3800lm 840 ADV2 28003278 4,000 K 5 pc(s). 2.75 kg
ELA 1200x300mm 3800lm 830 ADV2 28003279 3,000 K 5 pc(s). 2.55 kg
ELA 1200x300mm 3800lm 840 ADV2 28003280 4,000 K 5 pc(s). 2.55 kg
ELA 1200x300mm 3800lm 865 ADV2 28003281 6,500 K 5 pc(s). 2.55 kg
Luminaire types:
Wide-area luminaires (in-built, remote, pendant)
Approval marks:
ESD
SC3 - Protection Class 3
CE
UKCA
ENEC
RoHs
Technical data
Beam characteristic 90°
Ambient temperature ta -20 ... +40 °C
tp rated 45 °C
tc 70 °C
Irated 800 mA
Imax 990 mA
Max. permissible LF current ripple 1,170 mA
Max. permissible peak current 1,500 mA / max. 10 ms
Max. working voltage for insulation SELV < 60 V
Insulation test voltage 0.5 kV
ESD classification Severity level 2
Risk group (IEC 62471) (1) RG0
Classification acc. to IEC 62031 Independent
Type of protection IP20
Lumen maintenance L70B50 50,000 h
Guarantee 5 Year(s)
Autoscroll for tables
Specific technical data
Type Article number Photo­metric code Useful luminous flux at tp = 25 °C (1) Expected luminous flux at tp rated (2) Typ. forward current Min. forward voltage at tp rated Max. forward voltage at tp = 25 °C Power con­sump­tion Pon at tp = 25 °C (3) Efficacy of the module at tp = 25 °C Expected efficacy of the module at tp rated Col­our ren­der­ing in­dex CRI
Operating mode HE at 600 mA
ELA 600x600mm 3800lm 830 ADV2 28003274 830/469 – 2,881 lm 600 mA 36.9 V 40.2 V 23.2 W – 125 lm/W >80
ELA 600x600mm 3800lm 840 ADV2 28003275 840/469 – 3,049 lm 600 mA 36.9 V 40.2 V 23.2 W – 133 lm/W >80
ELA 600x600mm 3800lm 865 ADV2 28003276 865/469 – 3,049 lm 600 mA 36.9 V 40.2 V 23.2 W – 133 lm/W >80
ELA 600x600mm 3800lm 830 ADV2 TPA 28003283 830/469 – 2,881 lm 600 mA 36.9 V 40.2 V 23.2 W – 125 lm/W >80
ELA 600x600mm 3800lm 840 ADV2 TPA 28003284 840/469 – 3,049 lm 600 mA 36.9 V 40.2 V 23.2 W – 133 lm/W >80
ELA 625x625mm 3800lm 830 ADV2 28003277 830/469 – 2,881 lm 600 mA 36.9 V 40.2 V 23.2 W – 125 lm/W >80
ELA 625x625mm 3800lm 840 ADV2 28003278 840/469 – 3,049 lm 600 mA 36.9 V 40.2 V 23.2 W – 133 lm/W >80
ELA 1200x300mm 3800lm 830 ADV2 28003279 830/469 – 2,881 lm 600 mA 36.9 V 40.2 V 23.2 W – 125 lm/W >80
ELA 1200x300mm 3800lm 840 ADV2 28003280 840/469 – 3,049 lm 600 mA 36.9 V 40.2 V 23.2 W – 133 lm/W >80
ELA 1200x300mm 3800lm 865 ADV2 28003281 865/469 – 3,049 lm 600 mA 36.9 V 40.2 V 23.2 W – 133 lm/W >80
Operating mode NM at 800 mA
ELA 600x600mm 3800lm 830 ADV2 28003274 830/469 4,040 lm 3,799 lm 800 mA 37.6 V 41.1 V 31.6 W 128 lm/W 121 lm/W >80
ELA 600x600mm 3800lm 840 ADV2 28003275 840/469 4,295 lm 4,017 lm 800 mA 37.6 V 41.1 V 31.6 W 136 lm/W 128 lm/W >80
ELA 600x600mm 3800lm 865 ADV2 28003276 865/469 4,295 lm 4,017 lm 800 mA 37.6 V 41.1 V 31.6 W 136 lm/W 128 lm/W >80
ELA 600x600mm 3800lm 830 ADV2 TPA 28003283 830/469 3,524 lm 3,799 lm 800 mA 37.6 V 41.1 V 31.6 W 112 lm/W 121 lm/W >80
ELA 600x600mm 3800lm 840 ADV2 TPA 28003284 840/469 3,744 lm 4,017 lm 800 mA 37.6 V 41.1 V 31.6 W 118 lm/W 128 lm/W >80
ELA 625x625mm 3800lm 830 ADV2 28003277 830/469 4,040 lm 3,799 lm 800 mA 37.6 V 41.1 V 31.6 W 128 lm/W 121 lm/W >80
ELA 625x625mm 3800lm 840 ADV2 28003278 840/469 4,295 lm 4,017 lm 800 mA 37.6 V 41.1 V 31.6 W 136 lm/W 128 lm/W >80
ELA 1200x300mm 3800lm 830 ADV2 28003279 830/469 4,040 lm 3,799 lm 800 mA 37.6 V 41.1 V 31.6 W 128 lm/W 121 lm/W >80
ELA 1200x300mm 3800lm 840 ADV2 28003280 840/469 4,295 lm 4,017 lm 800 mA 37.6 V 41.1 V 31.6 W 136 lm/W 128 lm/W >80
ELA 1200x300mm 3800lm 865 ADV2 28003281 865/469 4,295 lm 4,017 lm 800 mA 37.6 V 41.1 V 31.6 W 136 lm/W 128 lm/W >80
Operating mode HO at 900 mA
ELA 600x600mm 3800lm 830 ADV2 28003274 830/469 – 4,213 lm 900 mA 38.0 V 41.5 V 35.9 W – 118 lm/W >80
ELA 600x600mm 3800lm 840 ADV2 28003275 840/469 – 4,447 lm 900 mA 38.0 V 41.5 V 35.9 W – 125 lm/W >80
ELA 600x600mm 3800lm 865 ADV2 28003276 865/469 – 4,447 lm 900 mA 38.0 V 41.5 V 35.9 W – 125 lm/W >80
ELA 600x600mm 3800lm 830 ADV2 TPA 28003283 830/469 – 4,213 lm 900 mA 38.0 V 41.5 V 35.9 W – 118 lm/W >80
ELA 600x600mm 3800lm 840 ADV2 TPA 28003284 840/469 – 4,447 lm 900 mA 38.0 V 41.5 V 35.9 W – 125 lm/W >80
ELA 625x625mm 3800lm 830 ADV2 28003277 830/469 – 4,213 lm 900 mA 38.0 V 41.5 V 35.9 W – 118 lm/W >80
ELA 625x625mm 3800lm 840 ADV2 28003278 840/469 – 4,447 lm 900 mA 38.0 V 41.5 V 35.9 W – 125 lm/W >80
ELA 1200x300mm 3800lm 830 ADV2 28003279 830/469 – 4,213 lm 900 mA 38.0 V 41.5 V 35.9 W – 118 lm/W >80
ELA 1200x300mm 3800lm 840 ADV2 28003280 840/469 – 4,447 lm 900 mA 38.0 V 41.5 V 35.9 W – 125 lm/W >80
ELA 1200x300mm 3800lm 865 ADV2 28003281 865/469 – 4,447 lm 900 mA 38.0 V 41.5 V 35.9 W – 125 lm/W >80
Document Size Date

Module_ELA_ADV2_en.pdf
Data sheet 		2.15 MB 18/01/2024
ELA_G2_Installation_instruction.pdf
Mounting instructions 		2.71 MB 25/01/2024
Leaflet_Module_ELA_EN.pdf
Leaflet – Module ELA 		647 KB 23/03/2022
ELA 1200x300mm 3800lm ADV2
ELA 1200x300mm 3800lm ADV2
Certificates / declarations of conformity
Type      Article number      Certificates
Certificates ()

Certificates for ()

Document      Country      Size      Date of issue
new

ELA mounting accessories ACE Surface mount kit Accessories

  • ACE Surface mount kit 600mm AL WH G2

    ACE Surface mount kit 600mm AL WH G2

  • ACE Surface mount kit 1200x300mm AL WH

    ACE Surface mount kit 1200x300mm AL WH

  • ACE Surface mount kit 600mm AL WH G2 assembeled

    ACE Surface mount kit 600mm AL WH G2 assembeled

Product description

  • Aluminium frame for easy surface mounting
Ordering data
Type Article number Colour Packaging, carton Weight per pc.
ACE SURFACE MOUNT KIT 600mm AL WH G2 28003372 White 20 pc(s). 0.483 kg
ACE SURFACE MOUNT KIT 625mm AL WH G2 28003373 White 20 pc(s). 0.502 kg
ACE SURFACE MOUNT KIT 1200x300mm AL WH 28003291 White 20 pc(s). 0.630 kg

ELA mounting accessories ACE Suspension kit Accessories

  • ACE Suspension kit 600-625mm STL SI G2

    ACE Suspension kit 600-625mm STL SI G2

  • ACE Suspension kit 1200x300mm STL SI

    ACE Suspension kit 1200x300mm STL SI

Product description

  • Steel wire system for suspended mounting
  • Suspension height up to 1.2 m
Ordering data
Type Article number Colour Packaging, carton Weight per pc.
ACE SUSPENSION KIT 600-625mm STL SI G2 28003374 Silver 100 pc(s). 0.097 kg
ACE SUSPENSION KIT 1200x300mm STL SI 28003292 Silver 100 pc(s). 0.092 kg

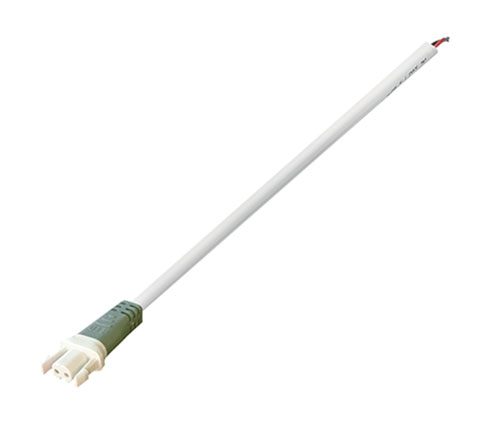

ELA mounting accessories ACE Lead connector Accessories

Product description

  • Additional driver pre-assembly lead connector for easy and fast onsite installation
  • Length 250 mm
  • Wire cross section AWG 22
  • Temperature resistance 80 °C
Ordering data
Type Article number Colour Packaging, carton Weight per pc.
ACE LEAD CONNECTOR 250mm 22AWG 28003371 White 100 pc(s). 0.009 kg
Autoscroll for tables
CAD / RAY
Type Article number CAD Files Photometric files
ELA 600x600mm 3800lm 830 ADV2 28003274 CAD (9.4 MB) Photometric (4.0 KB)
ELA 600x600mm 3800lm 840 ADV2 28003275 CAD (9.4 MB) Photometric (4.0 KB)
ELA 600x600mm 3800lm 865 ADV2 28003276 CAD (9.4 MB) Photometric (4.0 KB)
ELA 600x600mm 3800lm 830 ADV2 TPA 28003283 CAD (9.4 MB) Photometric (4.0 KB)
ELA 600x600mm 3800lm 840 ADV2 TPA 28003284 CAD (9.4 MB) Photometric (4.0 KB)
ELA 625x625mm 3800lm 830 ADV2 28003277 CAD (15.8 MB) Photometric (4.0 KB)
ELA 625x625mm 3800lm 840 ADV2 28003278 CAD (15.8 MB) Photometric (4.0 KB)
ELA 1200x300mm 3800lm 830 ADV2 28003279 CAD (14.9 MB) Photometric (4.0 KB)
ELA 1200x300mm 3800lm 840 ADV2 28003280 CAD (14.9 MB) Photometric (4.0 KB)
ELA 1200x300mm 3800lm 865 ADV2 28003281 CAD (14.9 MB) Photometric (4.0 KB)
EPD
Type Article number Environmental Product Declaration (EPD)
ELA 600x600mm 3800lm 830 ADV2 28003274 EPD
ELA 600x600mm 3800lm 830 ADV2 TPA 28003283 EPD
ELA 625x625mm 3800lm 830 ADV2 28003277 EPD
ELA 1200x300mm 3800lm 830 ADV2 28003279 EPD
