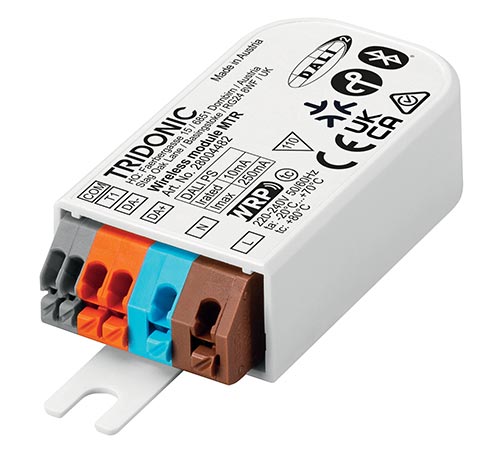

Wireless Module MTR NEW
Matter wireless module
Product description
- Matter certified device
- Communication via an IPv6 Thread Network
- Thread Border Router is required (e.g. Apple HomePod mini or Google NestHub)
- Small form factor for luminaire installation
- Digital output: DALI (Broadcast DT6)
- Integrated 10 mA DALI power supply
- Independent push-button input for free configuration
- Wireless firmware updates possible
- 5 years guarantee
| Ordering data | ||
|---|---|---|
| Type | Article number | Packaging, carton |
| Wireless module MTR | 28004482 | 1 pc(s). |
| Technical data | |
|---|---|
| Rated supply voltage | 220 – 240 V |
| Mains frequency | 50 / 60 Hz |
| Max. mains current | 10 mA |
| Typ. power consumption on stand-by | < 0.4 W |
| Input | 1 momentary-action switch |
| Max. cable length push button | 5 m bei 0,14-0,5 mm² |
| Radio transceiver operating frequencies | 2.4 – 2.483 GHz |
| Max. output power radio transceiver (E.R.I.P.) (1) | < + 20 dBm |
| Output | Broadcast, DT6, DALI (compatible) |
| Guaranteed output current, DALI (2) | 10 mA |
| Max. output current, DALI | 250 mA |
| Max. DALI wiring length | 5 m at 1 mm² |
| Starting time | ≤ 2 s |
| Ambient temperature ta | -20 ... +70 °C |
| Max. casing temperature tc | 80 °C |
| Storage temperature ts | -25 ... +75 °C |
| Lifetime | up to 50,000 h |
| Guarantee | 5 Year(s) |
| Dimensions L x W x H (3) | 80.7 x 30 x 15.3 mm |
| Type of protection | IP20 |
| Certificates / declarations of conformity | ||
| Type | Article number | Certificates |
|---|---|---|
| Certificates () | ||
