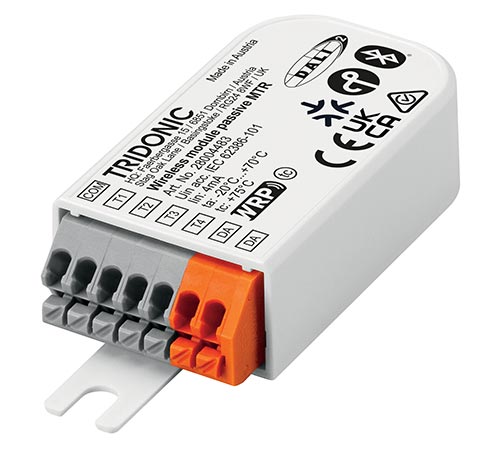

Wireless Module Passive MTR NEW
Matter wireless module
Product description
- Matter certified device
- Communication via an IPv6 Thread Network
- Thread Border Router is required (e.g. Apple HomePod mini or Google NestHub)
- Small form factor for luminaire installation
- Digital output: DALI (Broadcast DT6)
- Supplied via DALI line
- 4 independent push-button inputs for free configuration
- Wireless firmware updates possible
- 5 years guarantee
| Ordering data | |||
|---|---|---|---|
| Type | Article number | Packaging, carton | Weight per pc. |
| Wireless module passive MTR | 28004483 | 60 pc(s). | 0.017 kg |
| Technical data | |
|---|---|
| Supply voltage DC | 9.5 – 22.5 V |
| Current consumption of DALI | 4 mA (30 mA at start) |
| Max. DALI bus current | 250 mA |
| Typ. power consumption on stand-by | < 0.09 W |
| Input | 4 momentary-action switches |
| Max. cable length push button | 5 m at 0.2-1.5 mm² |
| Radio transceiver operating frequencies | 2.4 – 2.483 GHz |
| Max. output power radio transceiver (E.R.I.P.) (1) | < + 20 dBm |
| Output | Broadcast, DT6, DALI (compatible) |
| Starting time | ≤ 2 s |
| Ambient temperature ta | -20 ... +70 °C |
| Max. casing temperature tc | 75 °C |
| Storage temperature ts | -25 ... +75 °C |
| Lifetime | up to 50,000 h |
| Guarantee | 5 Year(s) |
| Dimensions L x W x H (2) | 80.7 x 30 x 15.3 mm |
| Type of protection | IP20 |
