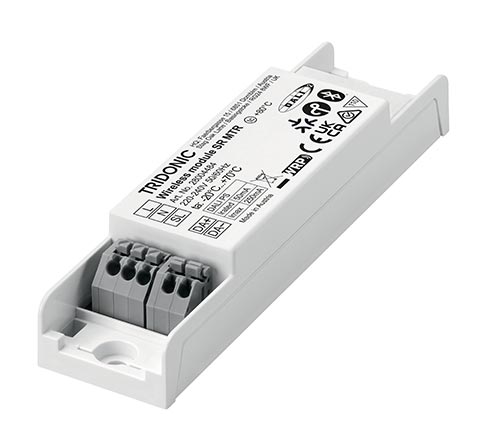

Wireless Module SR MTR NEW

Matter wireless module

Product description

Matter certified device
Communication via an IPv6 Thread Network
Thread Border Router is required (e.g. Apple HomePod mini or Google NestHub)
Can be either used build-in or independent with clip-on strain-relief (see accessory)
Optional strain-relief set for independent applications (see accessory)
Digital output: DALI (Broadcast DT6)
Integrated 50 mA DALI power supply
Independent mains operated push-button input for free configuration
Wireless firmware updates possible
5 years guarantee

Ordering data
Type	Article number	Packaging, carton
Wireless module SR MTR	28004484	1 pc(s).

Technical data
Rated supply voltage	220 – 240 V
Mains frequency	50 / 60 Hz
Max. mains current	18 mA
Typ. power consumption on stand-by	< 0.5 W
Input	1 push-button (mains operated)
Radio transceiver operating frequencies	2.4 – 2.483 GHz
Max. output power radio transceiver (E.R.I.P.) (1)	< + 20 dBm
Output	Broadcast, DT6, DALI (compatible)
Guaranteed output current, DALI (2)	50 mA
Max. output current, DALI	250 mA
Max. DALI wiring length	300 m at 1.5 mm²
Starting time	≤ 2 s
Ambient temperature ta	-20 ... +70 °C
Max. casing temperature tc	80 °C
Storage temperature ts	-25 ... +75 °C
Lifetime	up to 50,000 h
Guarantee	5 Year(s)
Dimensions L x W x H	119 x 30 x 21 mm
Type of protection	IP20
Protection class	I (II with strain relief)

Document	Size	Date

Data sheet	1.07 MB	29/06/2023
Installation instructions	242 KB	13/03/2023
Matter – Commissioning Quick Guide	1.21 MB	01/06/2023

Type	Article number	Certificates
Certificates / declarations of conformity

		Certificates ()

Document	Country	Size	Date of issue

				new

Strain relief for up to 3 cables suitable for cable with diameter from 2.5 up to 9 mm
A: 2.5 – 5 mm diameter
B: 5 – 9 mm diameter
C: 5 – 9 mm diameter

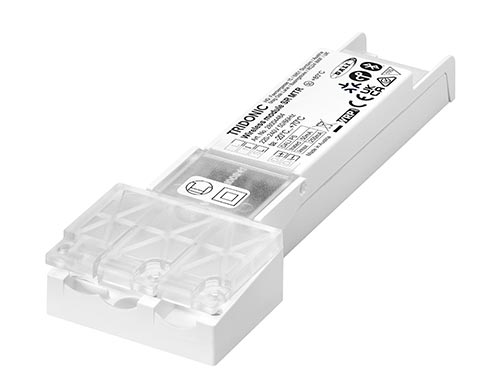

Optional strain-relief set for independent applications
Transforms the unit into a full Class II compatible unit (e.g. for ceiling installation)
One set includes 2 pieces strain-reliefs
5 years guarantee

Ordering data
Type	Article number	Packaging, carton	Weight per pc.
Strain-relief set	28000881	10 pc(s).	0.05 kg

CAD / RAY
Type	Article number	CAD Files
Strain-relief set	28000881	CAD (4.1 MB)
