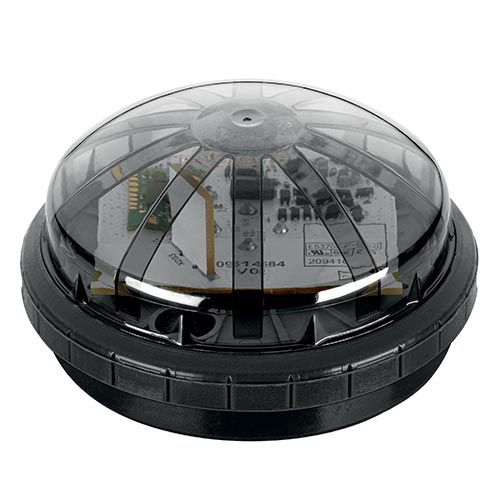

basicDIM Wireless Outdoor
Casambi Ready wireless modules
-
-
Dimensions without dust and dirt protection
-
Dimensions with dust and dirt protection
Product description
- 2.4 GHz Bluetooth network
- Wireless controllable with an Android / iOS smart device
- No need for an external gateway device
- Forms automatically a wireless communication network with up to 250 nodes
- Digital output to control IEC 62386 compatible drivers
- Supplied via IEC 62386 compatible power supply
- Support for Tridonic PSensor and MSensor
- Ready for Zhaga book 18 receptacle for easy and flexible installation to luminaire
- Device firmware can be updated over-the-air
- Can be used as repeater to extend the coverage of the wireless signal
- Lifetime up to 100,000 h at tc = 72 °C
- 5 years guarantee
Housing properties
- Casing: Transparent smoke grey
- Type of protection IP66
- Impact protection ≤ IK09
Typical applications
- Outdoor installations: parking lots, access roads, parks, etc.
| Ordering data | |||
|---|---|---|---|
| Type | Article number | Packaging, carton | Weight per pc. |
| basicDIM Wireless OTD | 28004237 | 30 pc(s). | 0.068 kg |
- Approval marks:
-
-
-
-
-
-
-
-
-
| Technical data | |
|---|---|
| Supply voltage (1) | 9.5 – 22.5 V |
| Current draw | 13 mA (30 mA at start) |
| Typ. power consumption (2) | 0.16 W |
| Mounting hole | acc. to Zhaga Book 18 Ed. 3 |
| Type of installation (3) | Zhaga Book 18 Ed. 3 socket |
| Max. cable length | 3 m |
| Radio transceiver operating frequencies | 2.4 – 2.483 GHz |
| Max. output power radio transceiver (E.R.I.P.) (4) | < + 20 dBm |
| Max. radio range (5) | 150 m |
| Radio protocol | Bluetooth 4.0 |
| Capable for mesh network | Up to 250 nodes |
| Interface | Digital interface according to IEC 62386 |
| Ambient temperature ta | -40 ... +70 °C |
| tc point | 72 °C |
| Storage temperature ts | -40 ... +85 °C |
| Vent humidity range | 0 – 90 % |
| Dimensions Ø x H | ø 79.7 x 38.5 mm |
| Housing material top | PC polycarbonate |
| Housing material body | PBT |
| Housing colour top | Transparent smoke grey |
| Housing colour body | Grey |
| UV resistance | f1 |
| Type of protection | IP66 |
| Impact protection rating | ≤ IK09 |
| Lifetime | up to 100,000 h |
| Guarantee | 5 Year(s) |
| Certificates / declarations of conformity | ||
| Type | Article number | Certificates |
|---|---|---|
| Certificates () | ||
ACU Z18 Set Accessories
- Approval marks:
-
-
-
ACU Z18 REP 4PIN
-
ACU Z18 CAP IP66
-
ACU Z18 REP 4PIN + ACU Z18 CAP IP66
Product description
- Set consisting of receptacle, lock washer and mounting nut (ACU Z18 REP 4PIN)
- Designed for street lighting control
- Compliant with Zhaga Book 18 Ed. 3
- Optional IP66 with sealing cap (ACU Z18 CAP IP66)
- UL UV-f1 rated for outdoor use
- IK09 high impact resistant
- For more details see data sheet ACU Z18 Set
Housing properties
- Casing receptacle: PBT
- Type of protection IP20
Interfaces
- Supplies Zhaga Book 18 Ed. 3 contact system
| Ordering data | |||
|---|---|---|---|
| Type | Article number | Packaging, bag | Weight per pc. |
| ACU Z18 REP 4PIN | 28003209 | 100 pieces | 0.008 kg |
| ACU Z18 CAP IP66 | 28003208 | 100 pieces | 0.020 kg |
| CAD / RAY | ||
|---|---|---|
| Type | Article number | CAD Files |
| ACU Z18 REP 4PIN | 28003209 | CAD (1.0 MB) |
| ACU Z18 CAP IP66 | 28003208 | CAD (782.5 KB) |
| CAD / RAY | ||
|---|---|---|
| Type | Article number | CAD Files |
| basicDIM Wireless OTD | 28004237 | CAD (4.4 MB) |
